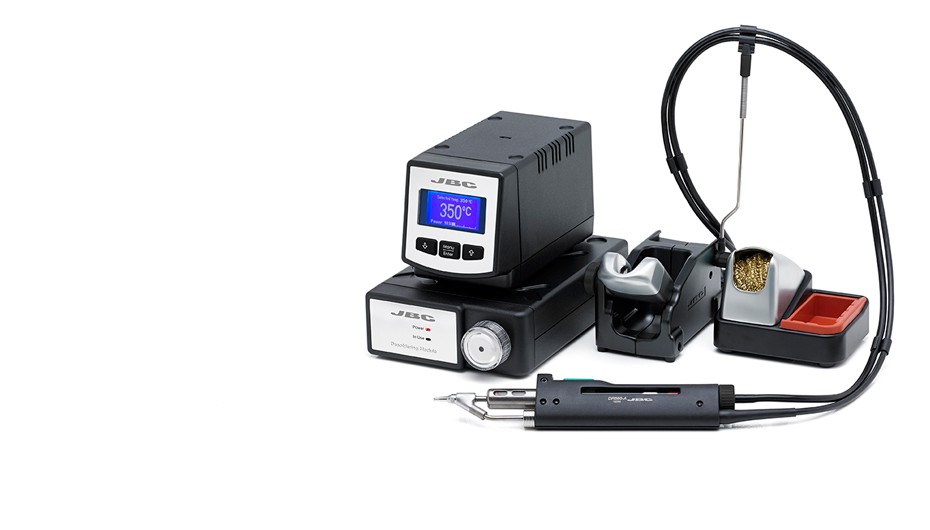

DIV station is designed for desoldering insertion components and for cleaning circuits with SMD components.
The MV suction module offers the best result using a Venturi valve. This system requires available compressed air at the operator´s bench.
It incorporates the JBC exclusive heating system, even The intelligent sleep and the hibernation feature.
Through the menu you can customize more than 20 functionalities.
Although DI suits any of JBC tools, DIV station works with DR560 desoldering iron.
The MV suction module offers the best result using a Venturi valve. This system requires available compressed air at the operator´s bench.
It incorporates the JBC exclusive heating system, even The intelligent sleep and the hibernation feature.
Through the menu you can customize more than 20 functionalities.
Although DI suits any of JBC tools, DIV station works with DR560 desoldering iron.
PRODUCT COMPOSITION
SPECIFICATIONS
| Net Weight | 5.4 kg (11.9 lb) |
| Size | See individual modules |
| Voltage(AC) | 120V |
| Input Fuse | 2A |
| Output Peak Power | 130W / 23.5V |
| Temperature selection | 90-450 ºC / 190-840 ºF |
| Tip to ground resistance | <2 ohms |
| Tip to ground voltage | <2mV RMS |
| Ambient operating temp. | 10-40 ºC / 50-104 ºF |
| ESD Safe | |
| USB interface station-PC | |
| Air pressure | 3 - 6 Bar |
| Vacuum | 90% / 680mmHg / 26.8inHg |
| Flow rate | 15 SLPM |
| Package weight | 6.3 kg (13.8 lb) |
| Package dimensions | 370x370x200 mm |
