DISCONTINUED

100 V - Desoldering station with Electric Pump
Ref.
CS-9D

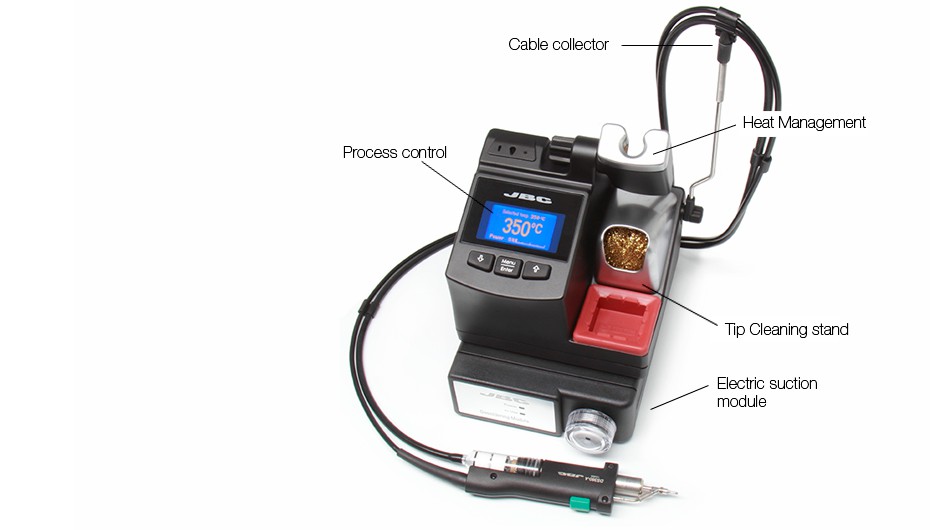

CS-9D - Desoldering station with Electric Pump
CS is a desoldering station with an electric pump and JBC Advanced system for precision electronic applications.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It incorporates a USB connector (type B) to update station software and create graphs.

Complete cleaning system with an antisplash membrane to keep the work area clean. Choose from 3 cleaning methods. Use the integrated wiper to remove excess solder from the tip.

CS is equipped with the MS-A electric pump and
works with the comfortable DS360 Micro desoldering Iron and C360 cartridges.
Product Composition
Consumables:
Control Unit:
CS with tip cleaning system
Cartridges:
Specifications
Net Weight2.800 kg (6.17 lb)
Size150 x 175 x 145 mm (station)
Voltage (AC)100V
Input Fuse2A
Output Peak Power40W / 23.5V
Temperature selection180-450 ºC / 356-840 ºF
Ambient operating temp.10-40 ºC / 50-104 ºF
Tip to ground resistance<2 ohms
Vacuum75% / 570 mmHg / 22.4 inHg
Flow rate9 SLPM
USB connector station-PC
ESD Safe
Package weight5.100 kg (11.24 lb)
Package dimensions330x260x305 mm
Documentation

Manuals:
CS-D Manual(4.52 Mb)

Brochures:
Compact Line(371 Kb)

Exploded View:
Exploded View(593 Kb)
