The new JT7750 hot air station features a button on the handpiece to activate and deactivate the air flow.
This control system is a comfortable alternative to the red button located on the front side of the control unit,
helping the operator to focus on the results of the rework process.
If the timer function is enabled, it can be also started/stopped by pressing this new button. Like the previous version JT7700,
the JT7750 is also compatible with an external pedal.
The handpiece has been re-styled and features an improved ergonomics.
F.A.Q
Tech Area
|
Catalogues
Donwloads
|
JBC Certifies that all the products in the advanced range are compatible
with leadfree technology. This applies to equipment of former generations (i.e. JT7000, AD2200,
AM6000 etc.) as well as all the current products. The differences that may be experienced between
the use of lead containing and leadfree alloys are:
-Slightly longer process time, especially using Hot air and-or the need to use higher temperature
i.e. 30 to 40 degrees Celcius extra. Also it can be recommended to use a bottom heater for some
applications.
-For contact tools like soldering Irons, hot tweezers and desoldering irons JBC recommends NOT
to use an increased temperature. The large majority of solder joints can be made successfully
at 350 degrees Celcius using the JBC advanced technology, if necessary, a higher temperature
can be used.
- If standard soldering tips are used for leadfree, the tiplife will be shorter than if a lead
containing alloy is used.

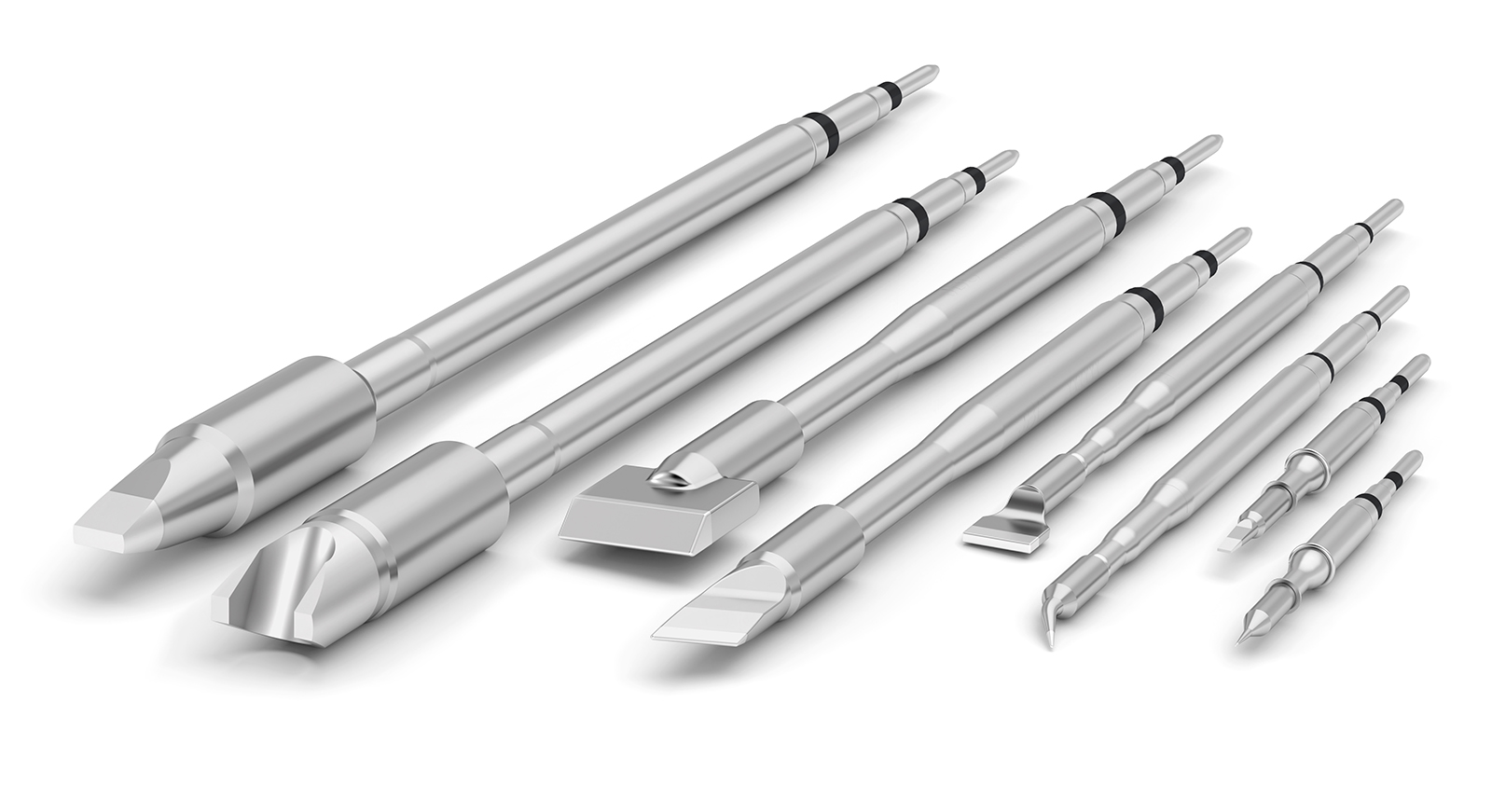

JBC recommends the use of our extended life cartridges. This will
result in a tiplife of 3 to 5 times longer than any competitor.
