100 V - Micro Rework

CP-9B - Micro Rework

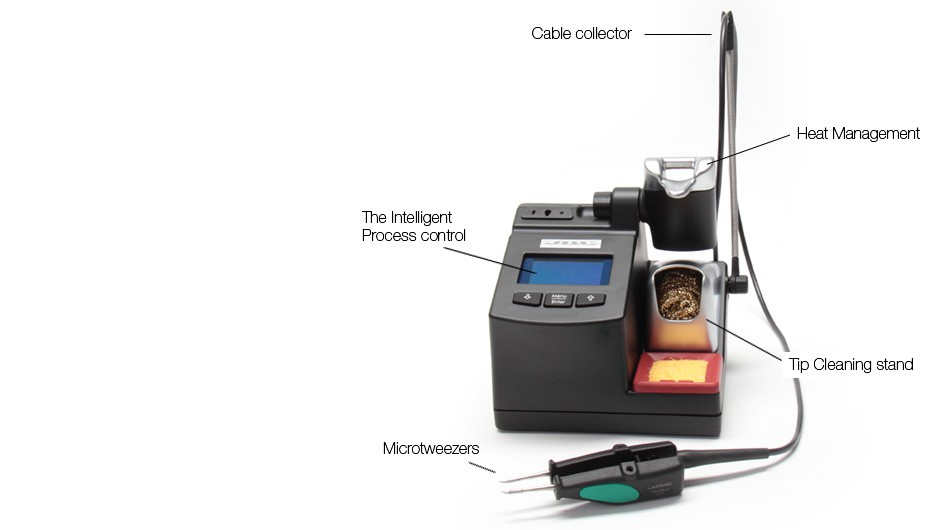

The CP is a soldering and desoldering station for small and medium SMD components.

It incorporates the JBC exclusive heating system that increases work efficiency thanks to the fast temperature recovery.

The intelligent sleep and hibernation features extend a tip life more than 5 times.

Using the menu you can personalize more than 20 functions in help to manage the soldering process.

CP works with the lightest and ergonomic PA120 microtweezers and C120 cartridge.

Compact stations feature all the necessary accessories to make your job easier.
Compact line
Product Composition
Weight2.7 Kg (6 lb)
Size150x175x145 mm
Input Fuse2A
Output Peak Power80W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
Package weight3.1 kg (6.8 lb)
Package dimensions235x235x260 mm

CP Manual(1.73 Mb)

Compact line(1.03 Mb)

Exploded View:
Connectable tools
