DISCONTINUED

CF
Solder Feed station

CF - Solder Feed station
The CF is a soldering station for intensive jobs which require you have a free hand.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It incorporates a USB connector (type B) to update station software and create graphs.

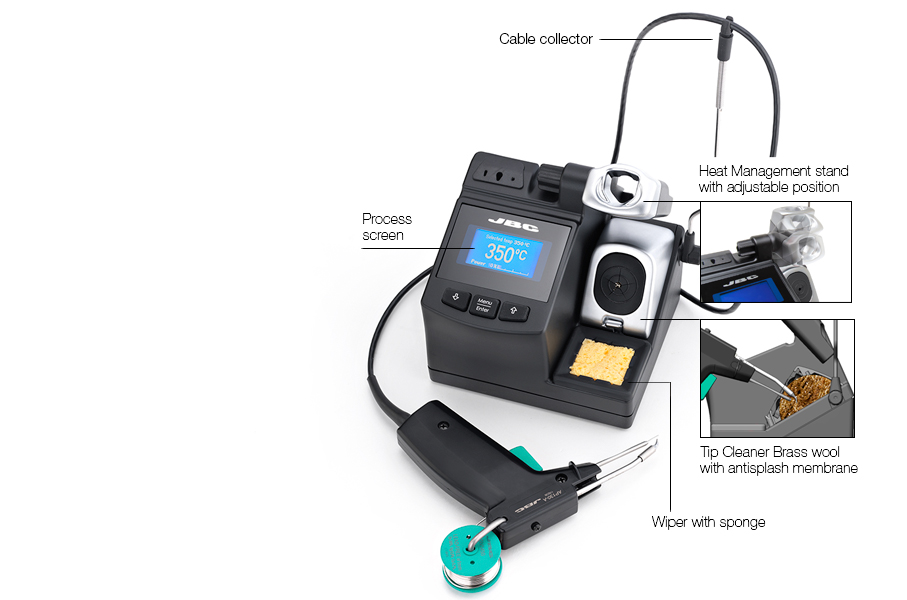

Complete cleaning system with an antisplash membrane to keep the work area clean.
Use the integrated wiper to remove excess solder from the tip.

CF works with the comfortable AP130 solder feed iron and C130 cartridges.
Compact Line
Product Composition
Control Unit:
CF with tip cleaning system
Cartridges:
Consumables:
Specifications
Weight2.8 kg (6.2 lb)
Size150x175x145 mm
Voltage(AC)230V / 120V / 100V
Input Fuse1A (230V), 2A (120V and 100V)
Output Peak Power130W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
Diameter of Solder Wire0.8-1 mm (0.03-0.04 in)
USB interface station-PC
Package weight3.3 kg (7.3 lb)
Package dimensions235x235x260 mm
Documentation

Manuals:
CF-E Manual(5.91 Mb)

Brochures:
Compact Line(1.02 Mb)

Exploded View:
Exploded View(401 Kb)
Connectable tools
Video
