100 V - Precision Hot Air station

TE-9D - Precision Hot Air station
TE is a precision hot air station for repairing small and medium SMD quickly and safely.

The unit features two work modes -manual or program- to manage efficiently the temperature and the hot air flow.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The station works with the TE-TB heater
and incorporates a USB connector (type B).

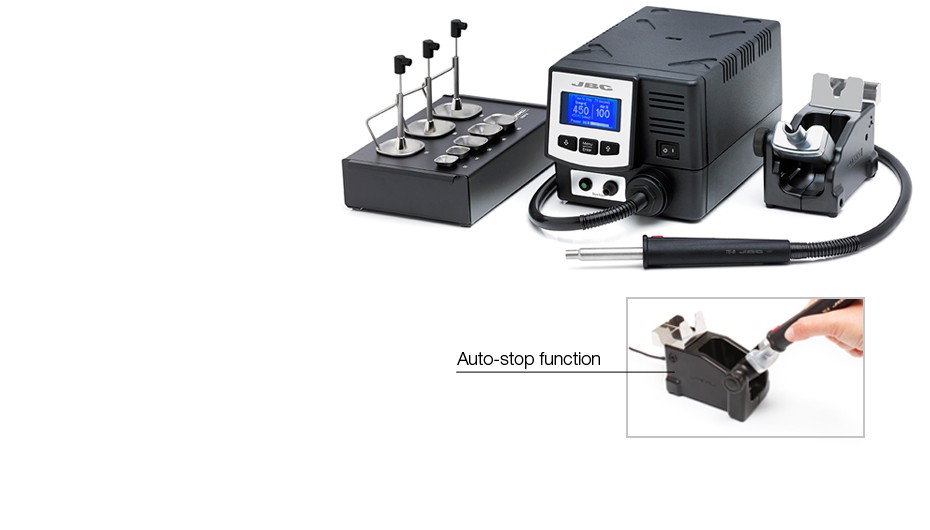

It comes with a complete extractor desk and the TE-SD Stand that guarantees the Auto-stop function.
Premium Line
Weight5.084 kg (11.20 lb)
Dimensions (Control Unit)148 x 184 x 140 mm
Voltage(AC)100V 50/60Hz
Input FuseT 8A
Nominal Power300W
Rated Current7A
Temperature selection150-450 ºC (300-840 ºF)
Cool ModeRoom Temperature
Ambient operating temp.10-40ºC (50-104 ºF)
Air Flow range3-17 SLPM
Vacuum30% / 228 mmHg / 9 inHg
USB-B connector station-PC
P-005 Pedal connector
ESD Safe
Package weight6.188 kg (13.64 lb)
Package dimensions474 x 368 x 195 mm

TE-D Manual(988 Kb)

Rework Brochure(1.95 Mb)

Exploded View:
Exploded View(418 Kb)
