R470043Grooved Chisel Cartridge 3 x 1.5

R470043
Grooved Chisel Cartridge 3 x 1.5

This cartridge is designed for the use in Automated and Heavy-Duty Soldering Processes.

The groove in the cartridge allows easy access of the dispensed tin to the solder joint.

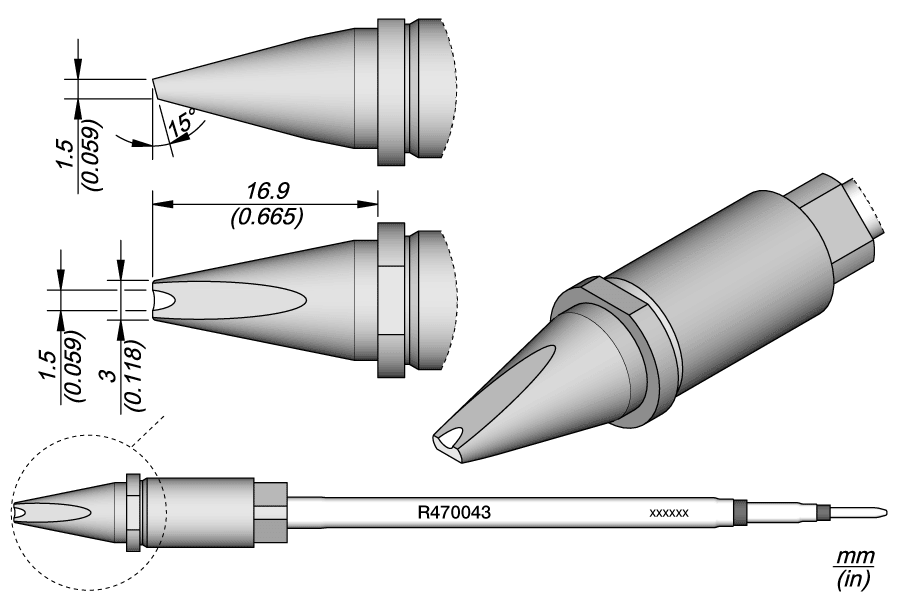

The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

R470043 fits TR470 Heavy Duty Soldering Tool and TRA470 Automatic Heavy Duty Soldering Tool.

JBC also offers the possibility to manufacture your special tip geometry. Do not hesitate to ask us on customtips@jbctools.com.
R470043 - Grooved Chisel Cartridge 3 x 1.5
R470043
Net weight
0,02 kg (0.04lb)
Weight and dimensions
16 gr (0.04 lb)
26 gr (0.06 lb)
183 x 60 x 34 mm
