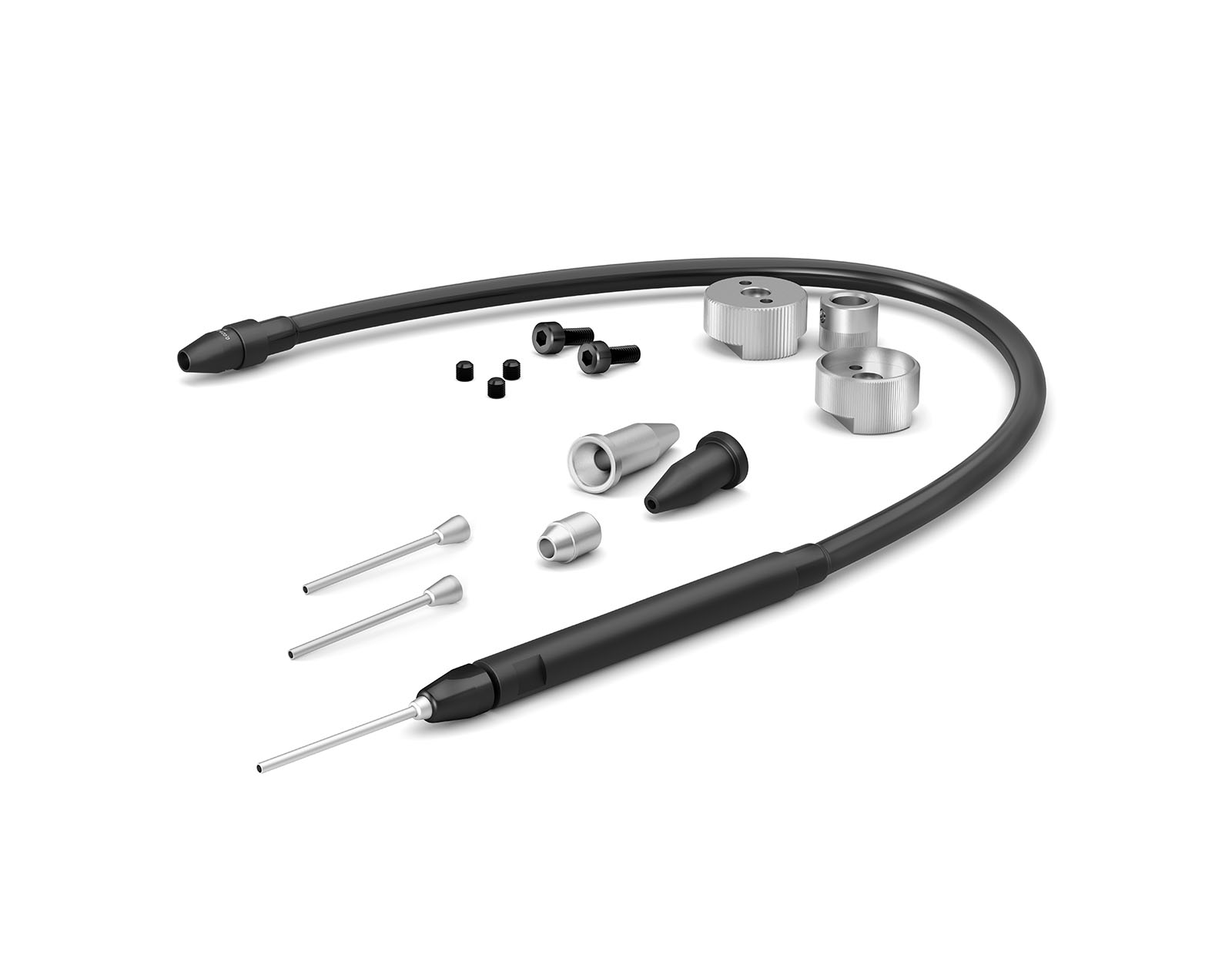

GSFR15D03
Guide Kit Ø 1.5 mm for SFR

Without solder wire perforation.

It is compatible with solder wire diameters of Ø 1.50 - 1.57 mm / Ø 0.060 - 0.063 in.

This Guide Kit suits for the SFR Solder Feeder and its easily exchangeable if different solder wire diameters are used.

Guide Kits are also available with solder wire perforation and for other wire diameters.

Different guide lengths are available if SFR is not fixed on the robot soldering head, check the manual for detailed information.
GSFR15D03-B - Guide Kit for SFR Ø 1.3 - 1.5 mm
GSFR15D03-B
1
GSFR15D03 Guide Kit Ø 1.5 mm for SFR
Length
30 cm / 11.81 in
Net weight
0,04 kg (0.09lb)
Weight and dimensions
42 gr (0.09 lb)
117 gr (0.26 lb)
245 x 185 x 45 mm
