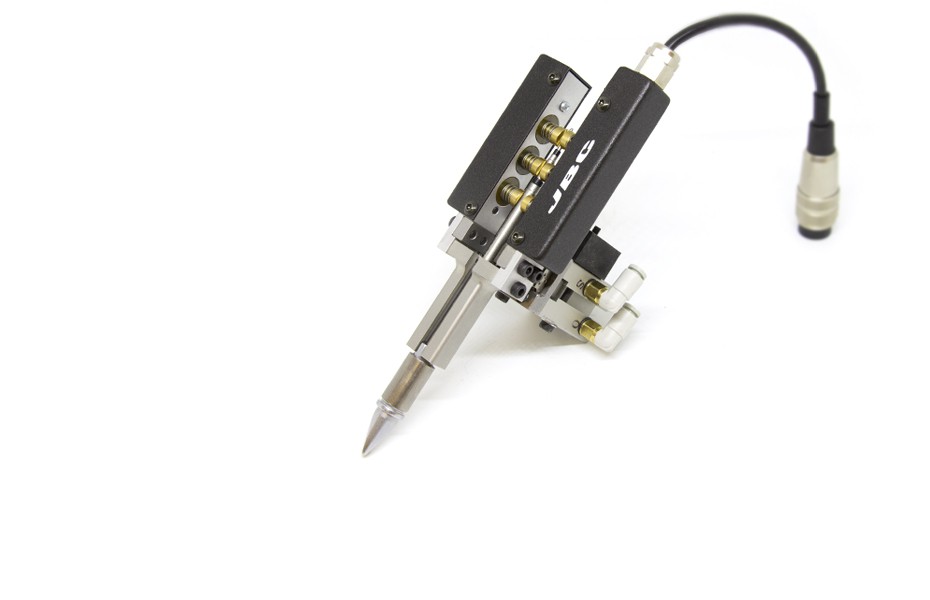

Auto. Soldering Iron for R470
TRA470-A

TRA470-A - Auto. Soldering Iron for R470
For Automated Process and Heavy Duty Soldering.

This Soldering Iron is controlled by the UCR470
Control Box and can be used in conjunction with
R470 Heavy Duty Cartridges with their precise positioning system.

The TRA470 mechanism is actuated by compressed air and this allows a fast and automatic cartridges exchange when cartridges worn out or when in the same soldering process different cartridge geometries are used.

It can be used in combination with the Soldering Head RBA and the Automatic Cartridge Stand CS2R470.

Discover here more products for automated soldering processes.
Specifications
Net Weight0,32 kg (0.70lb)
Package weight0,42 kg (0.93lb)
Package dimensions220 x 135 x 125 mm
(8.66 x 5.31 x 4.92 in)
ESD Safe
Documentation

Manuals:
TRA-A Manual(1.98 Mb)

Exploded View:

CAD Files:
2D TRA470-A(388 Kb)
3D TRA470-A (.step)(6.76 Mb)
