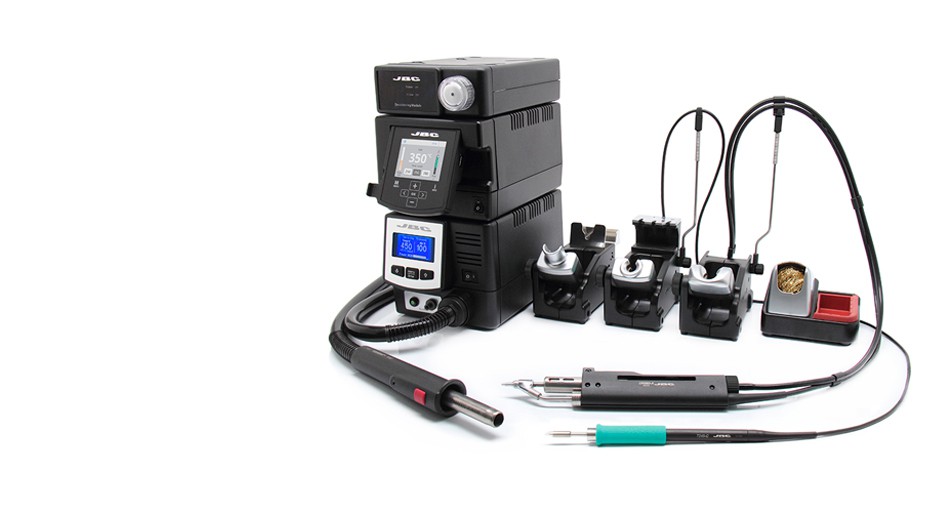

230 V - Complete Rework station with Pneumatic Pump
It consists of stackable modules and all the necessary accessories to make your job easier.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.
It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.
The RMVE works simultaneously with the DR560 Desoldering Iron, the T245 Handle and
the JT-TA Heater Hose Set and is compatible
with most JBC tools.
Required compressed air at the operator´s bench.
|Net Weight and Dimensions||See individual modules|
|Voltage||120 V / 230 V / 100 V|
|Output Peak Power||DDE:150 W per tool|
|Nominal Power||JT: 700 W|
|Temperature selection||JT:150-450ºC (300-840ºF) or Cool mode: Temp Off|
|DDE: 90-450 ºC (190-840 ºF)|
|Idle Temp. Stability (still air)||DDE: ± 1.5 ºC (± 3 ºF)|
|Ambient operating temp.||10-40 ºC (50-104 ºF)|
|Air Flow Regulation||JT:10-50 SLPM / MVE: 15 SLPM|
|Air pressure||4-6 Bar|
|Vacuum||JT: 30% / 228 mmHg / 9 inHg|
|Vacuum (at 6 Bar)||MVE: 90% / 680 mmHg / 26.8inHg|
|Tip to ground resistance||DDE: <2 ohms|
|Tip to ground voltage||DDE: <2 mV RMS|
|Communication connectors||JT: USB-B|
|DDE: USB-A / USB-B / Peripherals|
|Robot connector||DDE: RJ12 for RS-232 protocol|
|Pedal connection||JT and MVE: P-005 Pedal|
|Package weight||16.6 kg (36.5 lb)|
|Package dimensions||480 x 375 x 390 mm|
