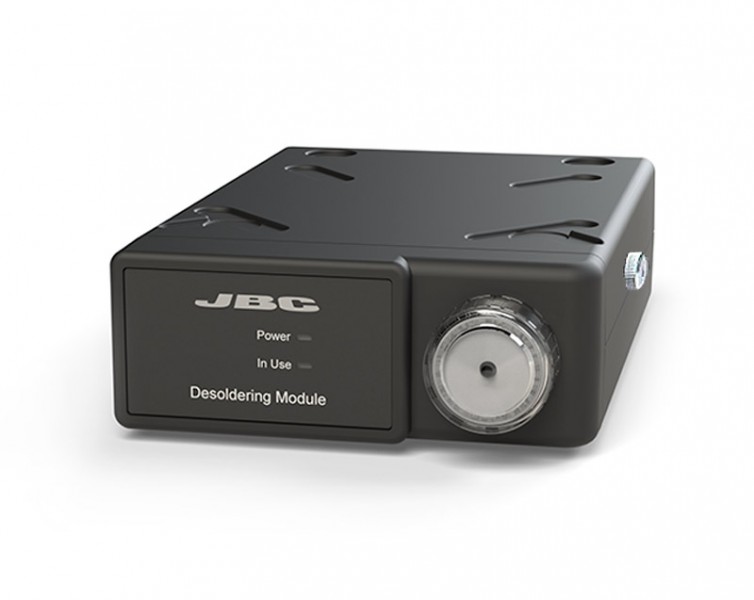

Pneumatic Desoldering Module for DDE & DME

Clean and dry compressed air is required.

The Pneumatic Desoldering Module is indispensable for a complete desoldering process.

By using compressed air and a Venturi valve, the system provides the best results due to its instantaneous vacuum ramp.

It is supplied with easy-to-change filters for extending the pump´s life.

The MVE can be joined to any port of the DDE & DME control units and has the possibility to be controlled by the P-005 Pedal.

It works with the comfortable DS360 or DR560 desoldering irons and their corresponding tips.
P-005 - Pedal
Net weight
0,70 kg (1.54lb)
145 x 55 x 225mm
(5.71 x 2.17 x 8.86 in)
Air pressure
4 - 6 Bar
Vacuum (at 6 bar)
90% / 680mmHg / 26.8inHg
Flow rate
Ambient operating temp.
10-40 ºC / 50-104 ºF
Pedal Conection
ESD safe
Package weight
1,00 kg (2.20lb)
Package dimensions
280 x 195 x 115 mm
(11.02 x 7.68 x 4.53 in)

MVE Manual(883 Kb)

Modular Line(622 Kb)

Exploded View:
Exploded View(419 Kb)
Modular System
Compatible tools
