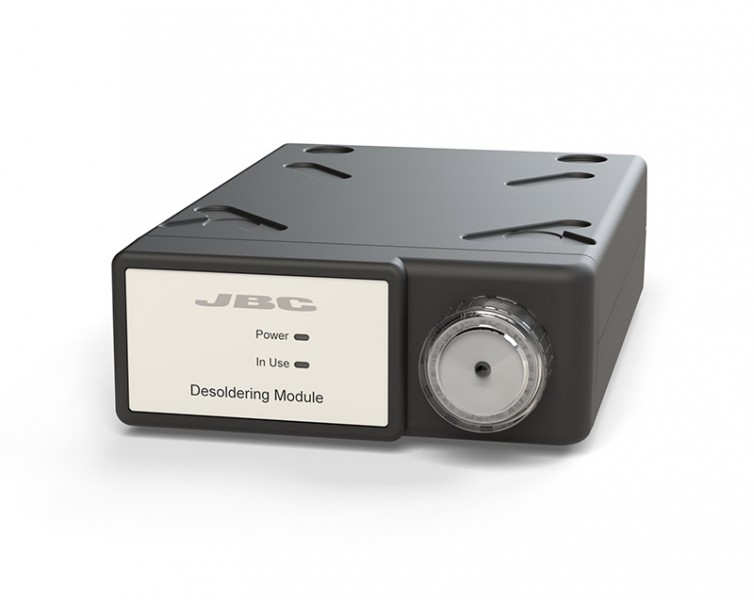

MS-A
Electric Desoldering Module for DI

The electric suction module is indispensable for a complete desoldering process.

Its optimized electronic suction system create a vacuum peak at the startup in order to collect the solder before it cools down.

It is equipped with some suction filters easy to change for extending the pump´s life.

MS is compatibe with CS station and DI control unit which manage the tip temperature while module removes the molten solder.

MS works with the comfortable DS360 or DR560 desoldering irons and their corresponding tips.
DR560-A - Desoldering Iron
Net weight
1,19 kg (2.63lb)
Size
145 x 55 x 225 mm
(5.71 x 2.17 x 8.86 in)
Voltage
24V (from control unit)
Vacuum
75% / 570mmHg / 22.4inHg
Flow rate
9 SLPM
Ambient operating temp.
10-40 ºC / 50-104 ºF
ESD safe
Package weight
1,50 kg (3.31lb)
Package dimensions
215 x 130 x 120 mm
(8.46 x 5.12 x 4.72 in)

Brochures:
Modular Line(622 Kb)

Exploded View:

Electric:
Compact Line
Modular System
