HA - Soldering Unit
The NEW Soldering Unit HA makes available to the Electronic Industry the first selective soldering solution featuring Automatic Cartridge Exchange.

JBC offers 2 different versions, the HA245 for General Soldering and the HA470 for intensive Heavy Duty Soldering.

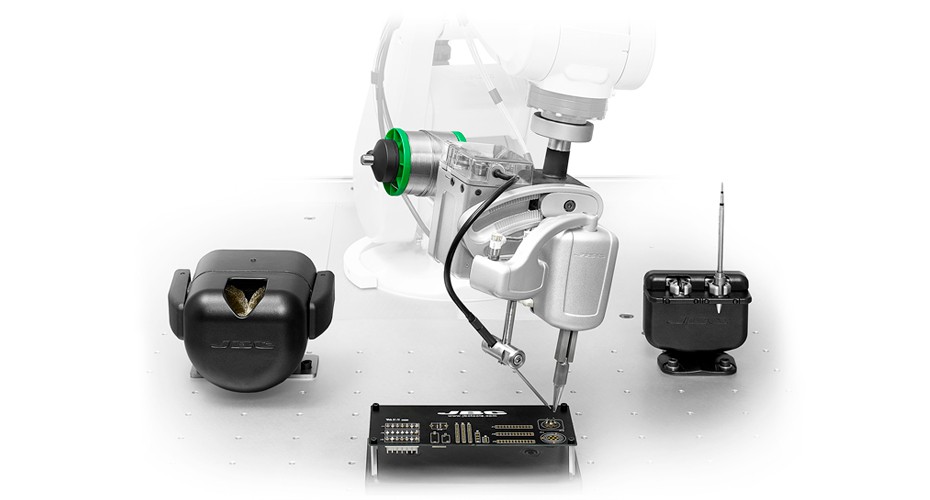

The New Automatic Tools TRA, in combination with the Cartridge Stands CS2R, feature automatic cartridge exchange which allows the soldering robot using different tip geometries to get the Highest Soldering Quality and automatically changing the cartridge when the one being used wears out.

The Solder Feeder SFR, assembled on the RBA Soldering Head, includes solder wire perforation function, allowing flux flow and outgassing to minimize solder splashing.

The Tip Cleaner CLMR with its 50 mm (1.97") diameter brushes thoroughly clean the soldering tip in just 1 second increasing its heat transfer capacity.

To establish the communication between the UCR Control Box and a Robot (PC or PLC) JBC provides the RS232 Communication Protocol for UCR. Download at www.jbctools.com/jbcsoftware.html.

Cartridges and Guide Tube Sets GSFR are not included.
Available in the following references:
- Ref.

- Ref.

Selectable parameters
Temperature
90 to 450 ºC (190 to 840 ºF)
Solder wire length
0.5 to 250 mm / 0.02 to 9.84 in
Solder wire speed
0.5 to 120 mm/s / 0.02 to 4.72 in/s
Solder compatibility
Wire diameter
0.5 to 1.5 mm / 0.020 to 0.062 in
Special features
Cartridge compatibility
HA245A-5A: R245 Range
HA470A-5A: R470 Range
Automatic cartridge exchange
The TRA features automatic
cartridge exchange which allows the soldering robot using different tip geometries to get the Highest Soldering Quality or automatically changing the cartridge when the one being used wears out.
Solder Wire Perforation
Specific GSFR solder wire guide
sets for flux core perforation are available allowing flux flow and outgassing to minimize solder splashing.
Fast, thorough and gentle tip cleaning:
The Tip Cleaner CLMR with its
50 mm (1.97") diameter brushes thoroughly clean the soldering tip in just 1 second increasing its
heat transfer capacity. Brushes
are available with metal or plastic bristles.
ESD/EOS
ESD safe
Tip to ground resistance
<2 ohms
Power supply
Peak power
HA245A-5A: 160 W - 21 V
HA470A-5A: 250 W - 42 V
Voltage (AC)
100 to 240 V
Ambient operating temp.
10 to 40 ºC / 50 to 104 ºF
For extended information follow the links
Control Box
Automatic Solder Iron
Soldering Head
Solder Feeder
Cartridge Stand
Tip Cleaner
Dimensions and weight
Package
545 x 345 x 275 mm / 6.0 kg
21.5 x 13.6 x 10.8 in / 13.23 lb
