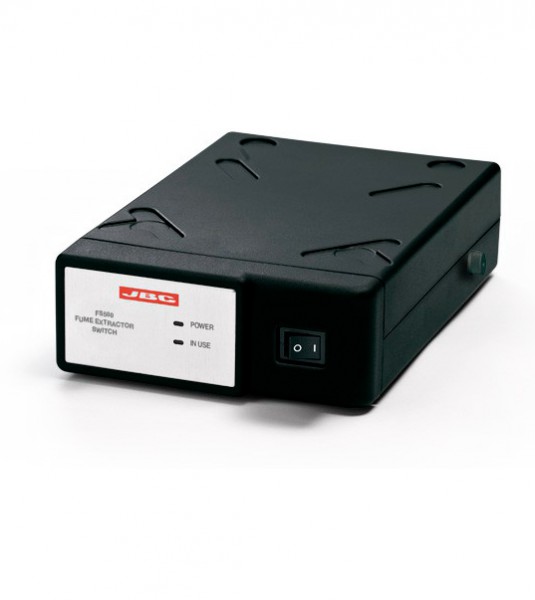

FS500-1A
Fume extractor switch

FS500-1A - Fume extractor switch
This accessory performs as a switch fumes suction system.

The feed of fume suction system is connected to the FS500 and this to the network acting as a switch.

When the soldering iron is in the stand the fume suction system stops, returning to work by lifting the iron to use.

Only compatible with DI, DD and DM Control units.
Net Weight910 gr (2.00 lb)
Size150x55x210 mm
Voltage(AC)24V (from control unit)
Power10W
Fuse5A
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
Package weight1.388 kg (3.06 lb)
Package dimensions243 x 115 x 75 mm
