4 Tools Rework station with Pneumatic Pump
100V -
DMVE-9A

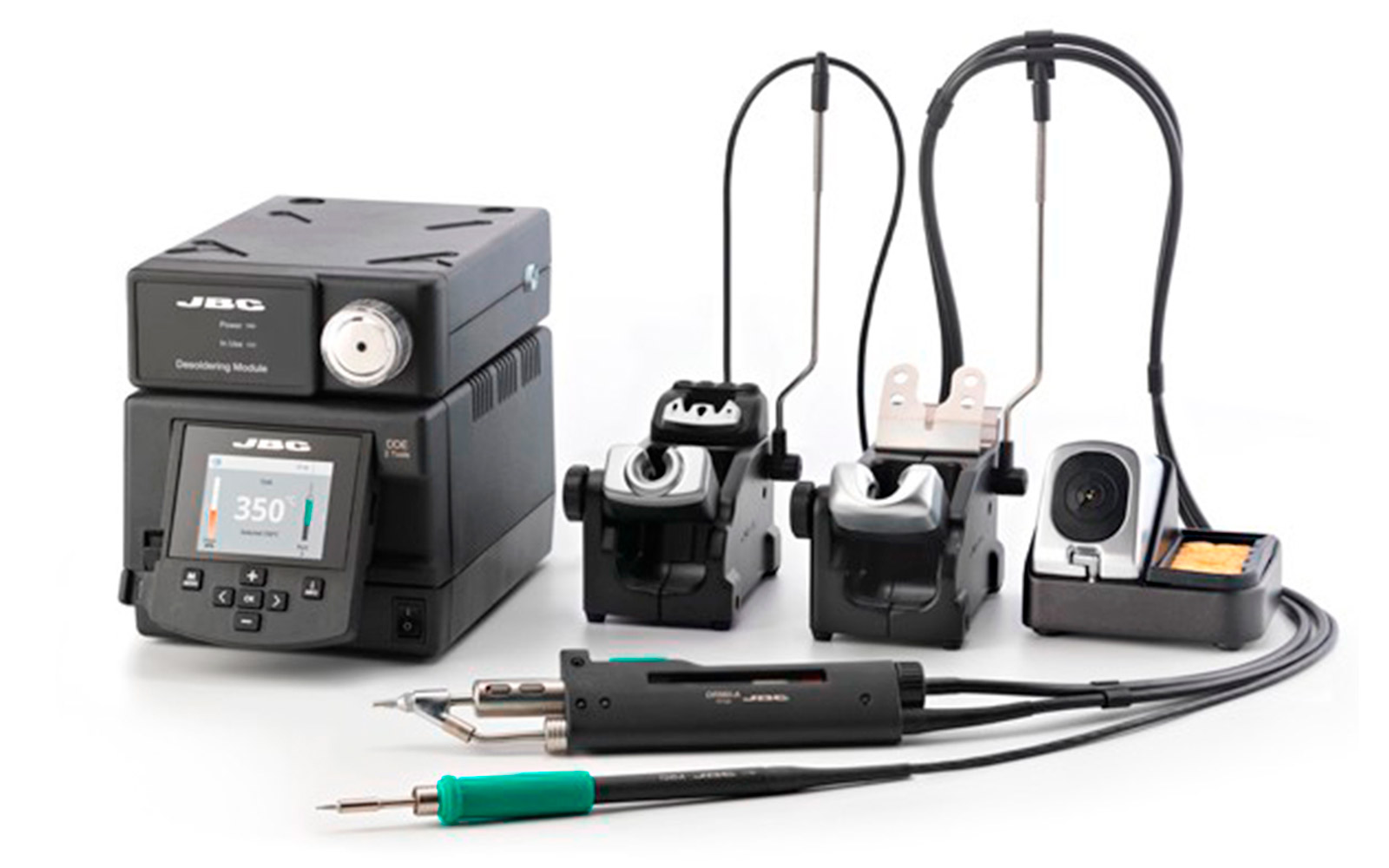

DMVE-9A - 4 Tools Rework station with Pneumatic Pump
The DME 4 Tools Control Unit manages up to 4 tools simultaneously and it is fully compatible with most of JBC tools.

The MVE Pneumatic Desoldering Module is indispensable for a complete desoldering process.


It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.


Although the unit is compatible with any JBC tool,
the DMVE works simultaneously with the DR560 Desoldering Iron and the T245 Handle.
Product Packaging
Control Units:
Stands:
Cartridges:
Cleaning Systems:
Specifications
Net Weight9,55 kg (21.05lb)
Dimensions148 x 120 x 232 mm
(5.83 x 4.72 x 9.13 in)
Voltage(AC)120V / 230V / 100V
Input fuse6A / 3.15A / 8A
Output peak power160W per tool
Temperature selection90-450 ºC (190-840 ºF)
Idle temp. stability (still air)±1.5 ºC (±3 ºF)
Tip to ground resistance<2 ohms
Tip to ground voltage<2 mV RMS
Ambient operating temp.10-40 ºC (50-104 ºF)
Communication connectorsUSB-A / USB-B / Peripherals
Robot connectorRJ12
PS connectorRJ12
LAN (Ethernet)RJ45
ESD safe
Package weight10,62 kg (23.40lb)
Package dimensions474 x 368 x 195 mm
(18.66 x 14.49 x 7.68 in)
Documentation

Manuals:
DMVE-A Manual(2.68 Mb)

Brochures:
Modular Line(622 Kb)

Exploded View:
Exploded View(951 Kb)
