DMSE anterior
2 Tools DME Station with Electric Pump

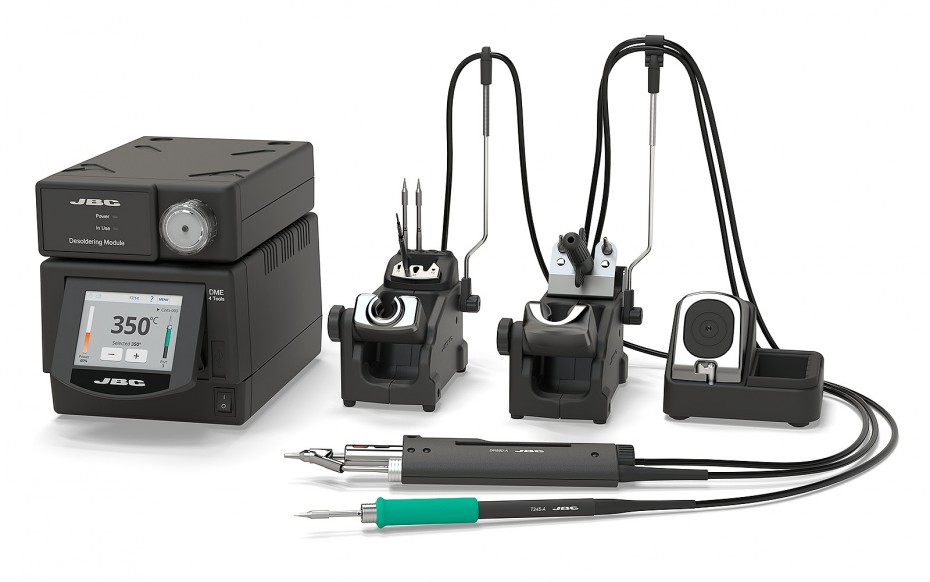

DMSE anterior - 2 Tools DME Station with Electric Pump
The DME manages up to 4 tools simultaneously and is fully compatible with 10 different JBC tools. Check below for the complete list of compatible tools.

The MSE Electric Desoldering Module is indispensable for a complete desoldering process.

It works with the JBC exclusive Heating System and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.

The DMSE works simultaneously with the DR560 Desoldering Iron and the T245 Handle.
Selectable parameters
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Dynamic Soldering Profiles
Designed to avoid thermal shock when soldering Ceramic Chip components like MLCC, this new and unique feature allows controlling the heating ramp up rate of the tool to gradually increase the temperature of the
component through all the phases of the soldering process. Up to 25 fully configurable soldering profiles can be stored.
Special features
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature
Limit the temperature range in which the operator is allowed to work.
Temperatue levels
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
Soldering graphics
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
PIN protection
Keep station parameters protected against unauthorized access.
10 user interface languages
English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.
Connectivity
USB-B
Software PC / Traceability
USB-A
Firmware update.
Soldering Graphics / Profiles management.
Dino-Lite USB microscope connection. Compatible models: AM2011 and AM2111.
Robot
RS-232 remote control or Smart Fume Extractor connection
LAN
Remote control / Traceability
PS
Interconnection of up to 5 PSE control units to manage up to 24 tools simultaneously.
Equipotential bonding
ESD/EOS
ESD safe
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
Power supply
Peak power
160 W per tool – 23.5 V
Operating temp. range
10 to 40 ºC / 50 to 104 ºF
Weight and dimensions
Control Unit
See individual modules
Package
368 x 474 x 195 mm / 11.11 kg
14.5 x 18.7 x 7.7 in / 24.49 lb
