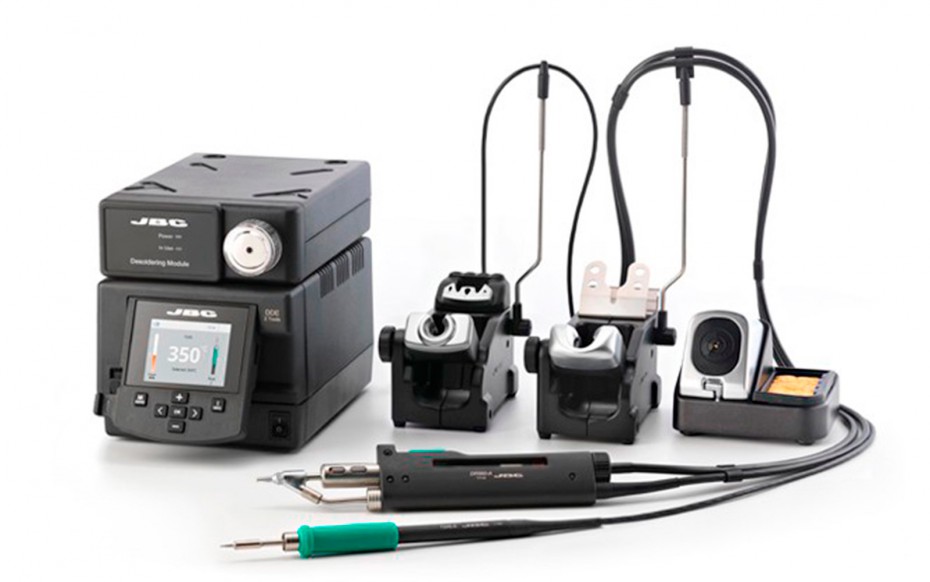

4 Tools Rework station with Electric Pump
The MSE Electric Desoldering Module is indispensable for a complete desoldering process.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.
It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.
Although the unit is compatible with any JBC tool,
the DMSE works simultaneously with the DR560 Desoldering Iron and the T245 Handle.
|Net Weight||10,05 kg (22.16lb)|
|Dimensions||148 x 120 x 232 mm|
|(5.83 x 4.72 x 9.13 in)|
|Voltage(AC)||120V / 230V / 100V|
|Input fuse||6A / 3.15A / 8A|
|Output peak power||160W per tool|
|Temperature selection||90-450 ºC (190-840 ºF)|
|Idle temp. stability (still air)||±1.5 ºC (±3 ºF)|
|Tip to ground resistance||<2 ohms|
|Tip to ground voltage||<2 mV RMS|
|Ambient operating temp.||10-40 ºC (50-104 ºF)|
|Communication connectors||USB-A / USB-B / Peripherals|
|Package weight||11,11 kg (24.49lb)|
|Package dimensions||474 x 368 x 195 mm|
|(18.66 x 14.49 x 7.68 in)|
