DISCONTINUED

120 V - Precision soldering station
Ref.
DIR-1B

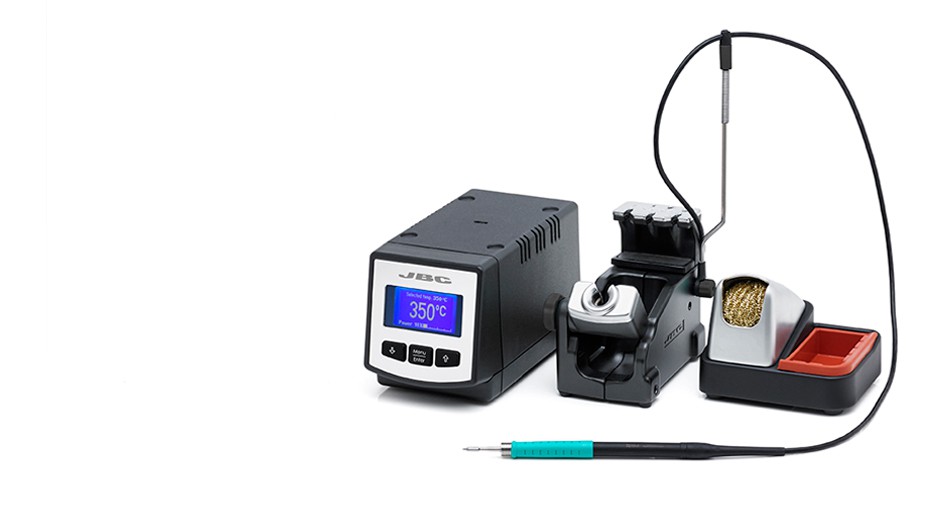

DIR-1B - Precision soldering station
The DIR soldering station is designed for industrial precision solder-joints with medium power requirements.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It incorporates a USB connector (type B) to update station software and create graphs.

Although its DI control unit can be connected to any of JBC tools, the DIR station works with the
lightest and ergonomic T210-A handpiece and C210 cartridges.
Product Composition
Cartridges:
Specifications
Net Weight4.3 kg (9.6 lb)
SizeSee individual modules
Voltage(AC)120V
Input Fuse2A
Output Peak Power40W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Package weight5.2 kg (11.5 lb)
Package dimensions370x370x200 mm
