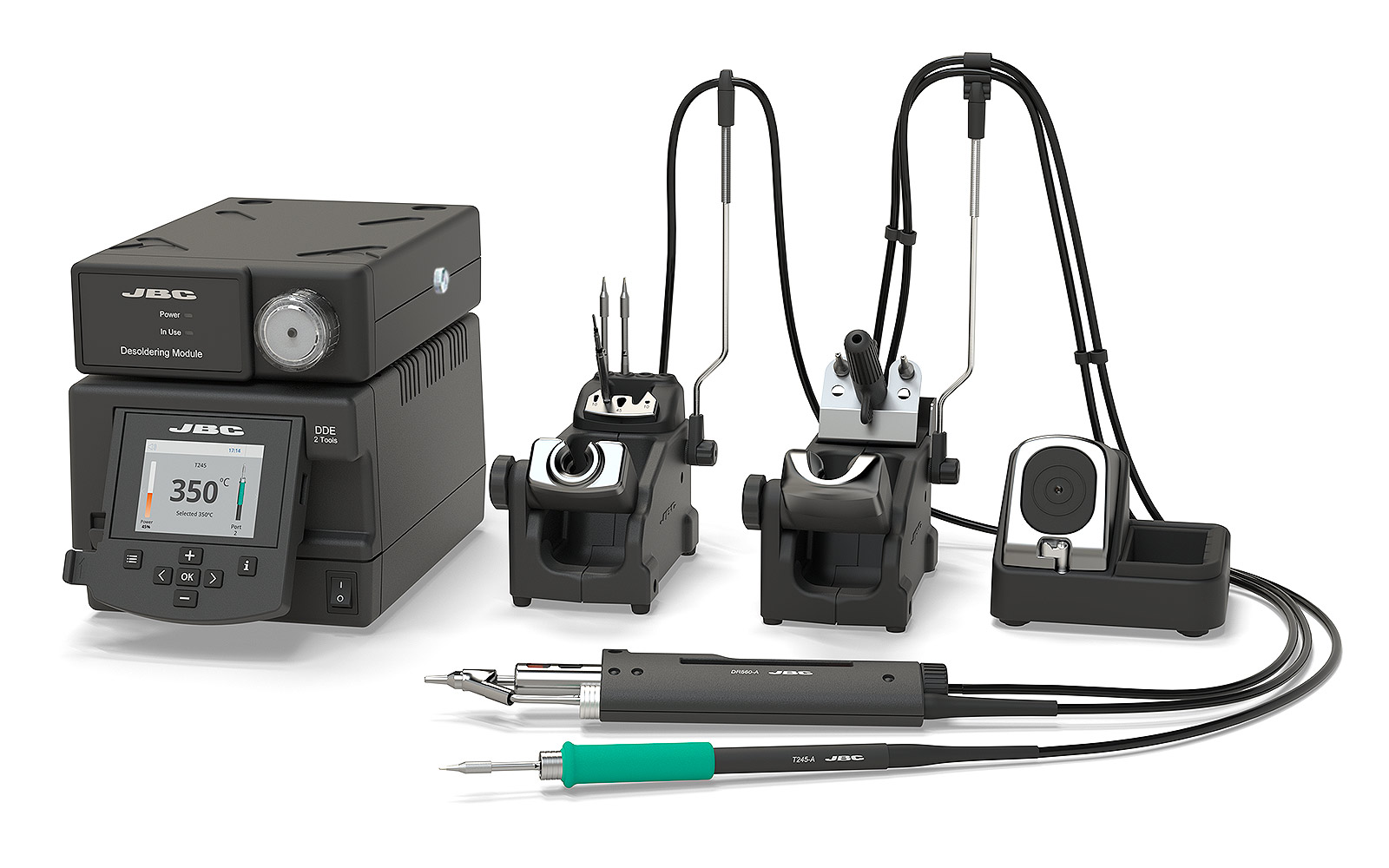

2 Tools Rework station with Pneumatic Pump
230 V -
The DDE 2 Tools Control Unit manages the tip
temperature and the MVE Pneumatic Desoldering Module sucks the solder. It is required available compressed air at the operator´s bench.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.
It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.
Although the unit is compatible with any JBC tool,
the DDVE works simultaneously with the DR560 Desoldering Iron and the T245 Handle.
|Net Weight||8,35 kg (18.40lb)|
|Dimensions||See individual modules|
|Output peak power||150W per tool|
|Temperature selection||90-450 ºC (190-840 ºF)|
|Idle temp. stability (still air)||±1.5 ºC (±3 ºF)|
|Tip to ground resistance||<2 ohms|
|Tip to ground voltage||<2 mV RMS|
|Ambient operating temp.||10-40 ºC (50-104 ºF)|
|Communication connectors||USB-A / USB-B / Peripherals|
|Robot connector||RJ12 for RS-232 protocol|
|Vacuum at 6 Bar (MVE-A)||90% / 680mmHg / 26.8inHg|
|Flow rate (MVE-A)||15 SLPM|
|Air pressure (MVE-A)||4-6 Bar|
|Package weight||9,85 kg (21.72lb)|
|Package dimensions||368 x 474 x 195 mm|
|(14.49 x 18.66 x 7.68 in)|
