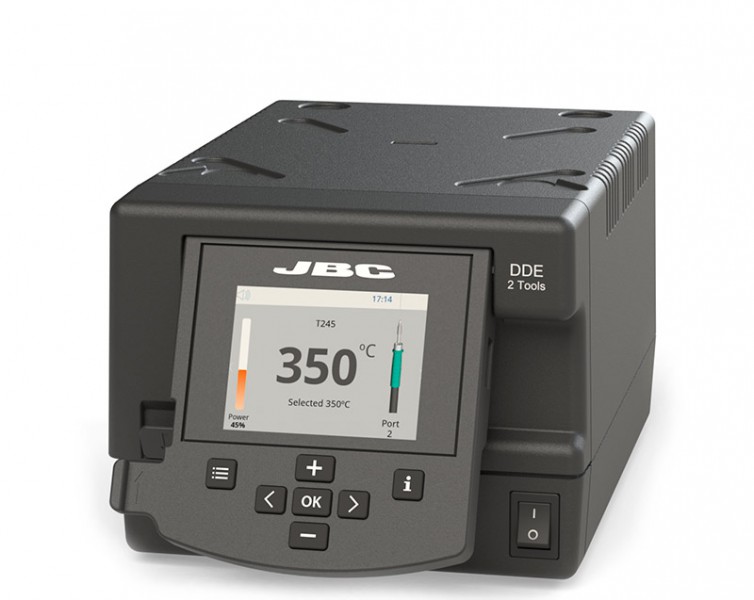

DDE2 Tools Control Unit

2 Tools Control Unit

The DDE manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools.

It works with the JBC exclusive Heating System and the intelligent sleep & hibernation modes.

It features Dynamic Soldering Profiles functionality designed to avoid thermal shock when soldering Ceramic Chip components like MLCC.

Take advantage of all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.

Its easy to use menu is configurable in 10 different languages: English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean and Chinese.
DDE-2C - 2 Tool Control Unit 230V
100 V
120 V
230 V
Selectable parameters
Selectable Temperature
90 to 450 ºC / 190 to 840 ºF
Dynamic Soldering Profiles
Designed to avoid thermal shock when soldering Ceramic Chip components like MLCC,
this new and unique feature allows controlling the heating ramp up rate of the tool to gradually increase the temperature of the component through all the phases of the soldering process.
Up to 25 fully configurable soldering profiles can be stored.
Special features
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature
Limit the temperature range in which the operator is allowed to work.
Temperatue levels
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
Soldering graphics
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
PIN protection
Keep station parameters protected against unauthorized access.
10 user interface languages
English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.
USB-B (rear)
Software PC / Traceability
USB-A (front)
Firmware update Soldering Graphics management
RS-232 remote control or Smart Fume Extractor connection.
Equipotential bonding

ESD safe

Power supply
Peak power
150 W per tool – 23.5 V
Ambient operating temp.
10 to 40 ºC / 50 to 104 ºF
Dimensions and weight
Control Unit
232 x 148 x 120 mm / 3.82 kg.
9.13 x 5.83 x 4.72 in / 8.41 lb.
258 x 328 x 208 mm / 4.27 kg.
10.16 x 12.91 x 8.19 in / 9.41 lb.
