CV-9CDesoldering station with Pneumatic Pump

CV-9C
Desoldering station with Pneumatic Pump

DISCONTINUED
CV-9C - Desoldering station with Pneumatic Pump

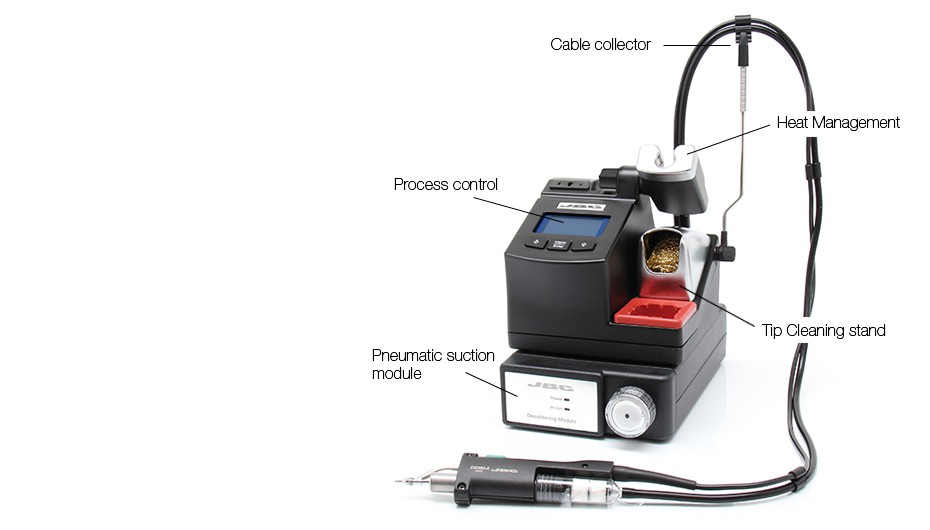

CV is a microdesoldering station using compressed air for precision electronic applications.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the process.

It incorporates a USB connector (type B) to update station software and create graphs.

CV works with the MV-A Pneumatic pump, the comfortable DS360 Microdesoldering Iron and C360 cartridges.
Net weight
2.8 kg (6.2 lb) (station)
Size
150x175x145 mm (station)
0.59 x 0.67 x 5.71 in
Voltage
100V
Input fuse
2A
Output peak power
40W / 23.5V
Temperature selection
180-450 ºC / 356-840 ºF
Operating temp. range
10-40 ºC / 50-104 ºF
ESD safe
Air pressure
3 - 6 Bar
Vacuum
90% / 680mmHg / 26.8inHg
Flow rate
15 SLPM
USB interface station-PC
Package weight
4.700 kg (10.36 lb)
Package dimensions
330x260x305 mm
1.30 x 1.02 x 12.01 in
