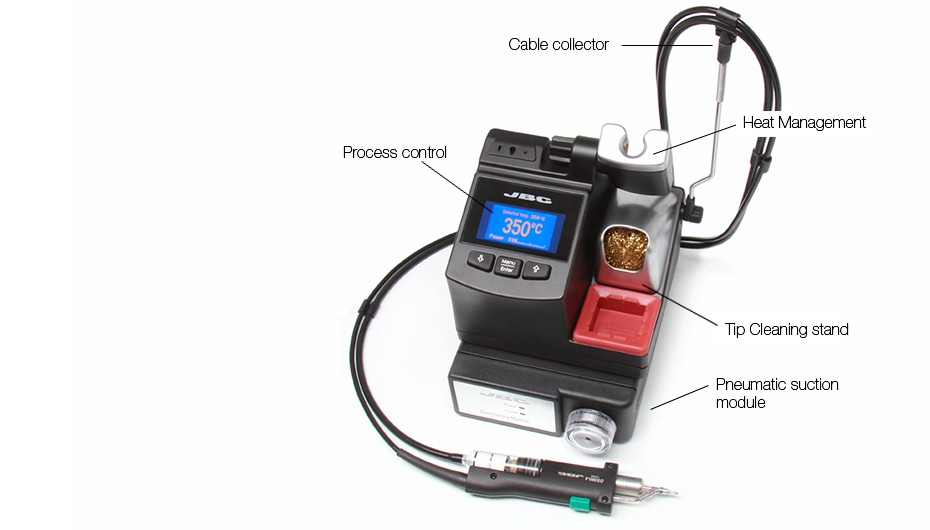

230 V - Desoldering station with Pneumatic Pump
It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.
Using the menu you can personalize over 20 parameters to help manage the process.
It incorporates a USB connector (type B) to update station software and create graphs.
Complete cleaning system with an antisplash membrane to keep the work area clean. Choose from 3 cleaning methods. Use the integrated wiper to remove excess solder from the tip.
CV works with the MV-A Pneumatic pump, the comfortable DS360 Microdesoldering Iron
and C360 cartridges.
|Net Weight||2.8 kg (6.2 lb) (station)|
|Size||150x175x145 mm (station)|
|Output Peak Power||40W / 23.5V|
|Temperature selection||180-450 ºC / 356-840 ºF|
|Ambient operating temp.||10-40 ºC / 50-104 ºF|
|Tip to ground resistance||<2 ohms|
|Air pressure||4 - 6 bar|
|Vacuum (at 6 Bar)||90% / 680 mmHg / 26.8 inHg|
|Flow rate||15 SLPM|
|USB connector station-PC|
|Package weight||4.7 kg (10.3 lb)|
|Package dimensions||330x260x305 mm|
