DISCONTINUED

120 V - Precision station
Ref.
CD-1SD

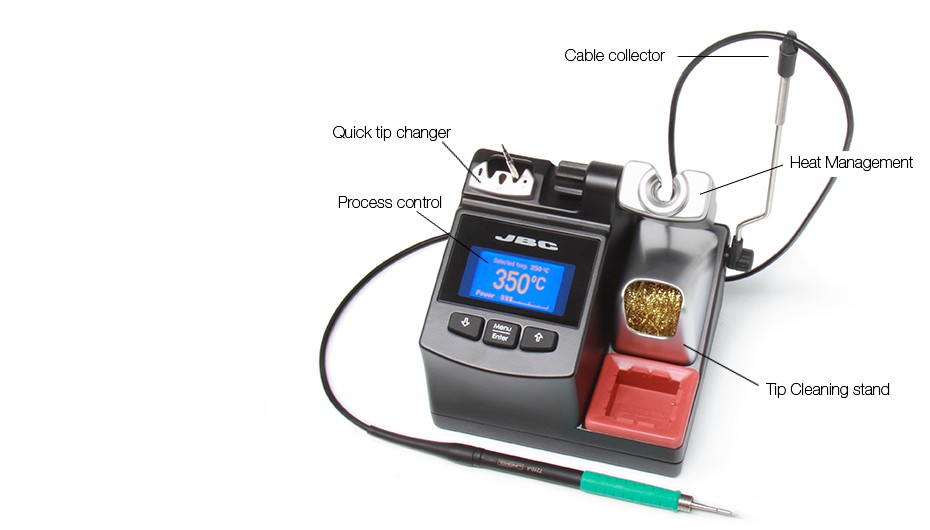

CD-1SD - Precision station
The CD-S is a soldering station for precision electronic applications.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It features a USB connector to update software, create graphs and manage parameters from a PC.

CD-S works with the lightest and ergonomic T210 Handpiece and the C210 cartridges.
Product Composition
Consumables:
Control Unit:
CD with tip cleaning system
Cartridges:
Specifications
Net Weight2.671 kg (5.88 lb)
Size150x175x145 mm
Voltage(AC)120V
Input Fuse2A
Output Peak Power40W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB station-PC
Package weight3.095 kg (6.82 lb)
Package dimensions234 x 234 x 258 mm
Documentation

Manuals:
CD-SD Manual(2.18 Mb)

Brochures:
Compact Line(371 Kb)

Exploded View:
Exploded View(682 Kb)
