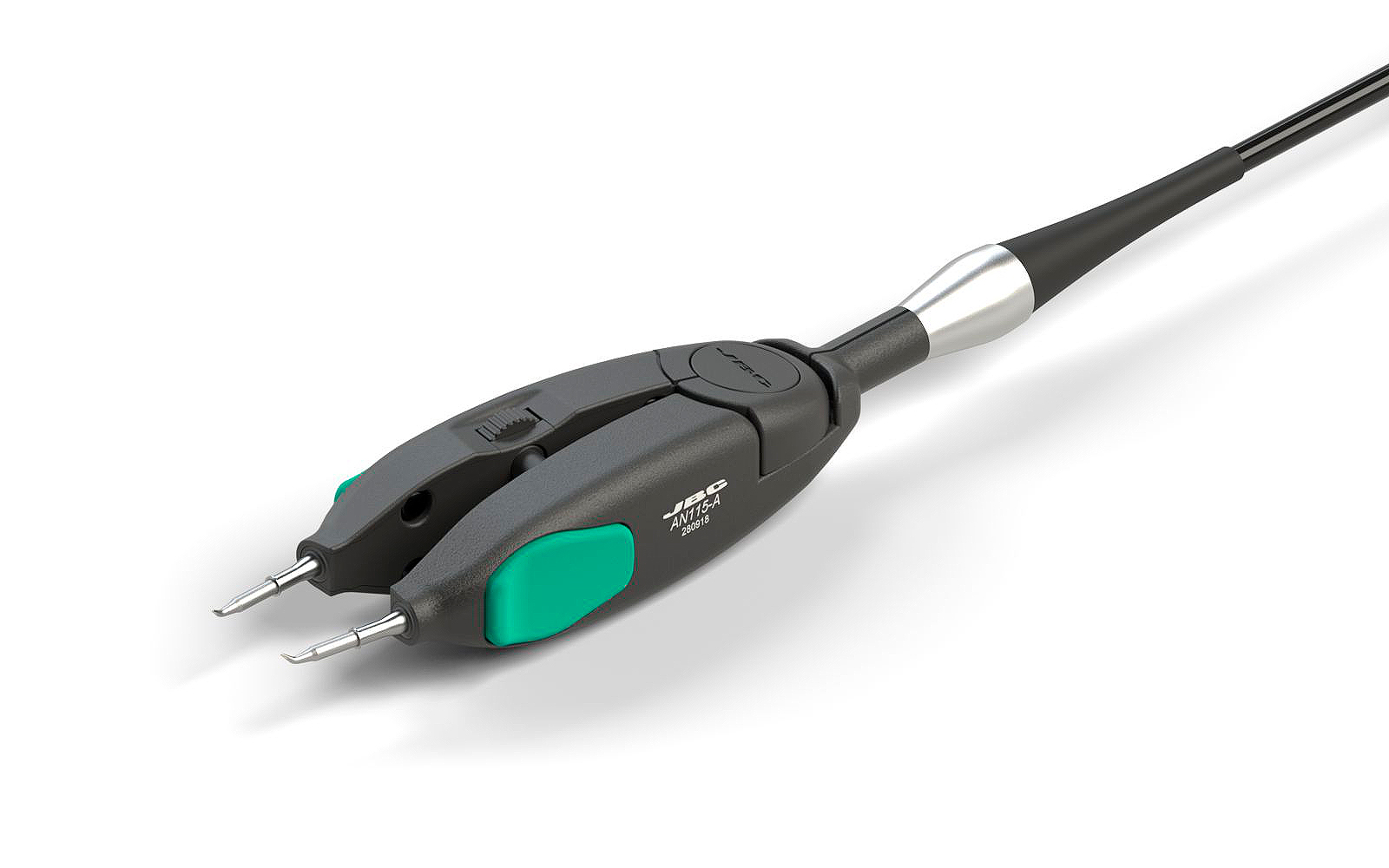

AN115-A
Adjustable Nano Tweezers

The JBC smallest adjustable tweezers AN115 provides the greatest precision when reworking the smallest chip components

Vertical cartridge alignment
The adjusting system guarantees that the cartridges are vertically aligned.

Stable movement
A single axis system helps guide your hand and steadies your pulse. Ideal for very precise applications.

Shortest distance Tip-to-Grip
Provides the greatest precision handling of the tool, even under microscope.

The Nano Tweezers AN115 works with the Nano Stations NASE-C and NANE-C and the C115 Cartridges. Not compatible with C105 Cartridge Range.

Supplied without cartridges.
Cartridge compatibility
Station compatibility
Temperature range
90 to 450 ºC / 190 to 840 ºF
Peak Power
14 W - 8.5V
Cable length
1.2 m / 3.9 feet
Special features
Cartridge alignment
The adjustment knob built in this Nano Tweezers allows perfect alignment of both tips for precise rework of the smallest SMD components.
Stable movement
Thanks to its robust pivot shaft, the Tweezers allows keeping the component in between the tips preventing it from flipping over.
ESD/EOS
ESD safe
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2 mV RMS
Dimensions and weight
Tool
29 x 20 x 103 mm / 0.05 kg
1.1 x 0.8 x 4.1 in / 0.11 lb
Package
235 x 40 x 40 mm / 0.09 kg
9.3 x 1.6 x 1.6 in / 0.21 lb
