120 V - Precision Hot Air station without extractor desk

TE-1QD - Precision Hot Air station without extractor desk
TE is a precision hot air station for repairing small and medium SMD quickly and safely.

The unit features two work modes -manual or program- to manage efficiently the temperature and the hot air flow.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The station works with the TE-TB heater
and incorporates a USB connector (type B).

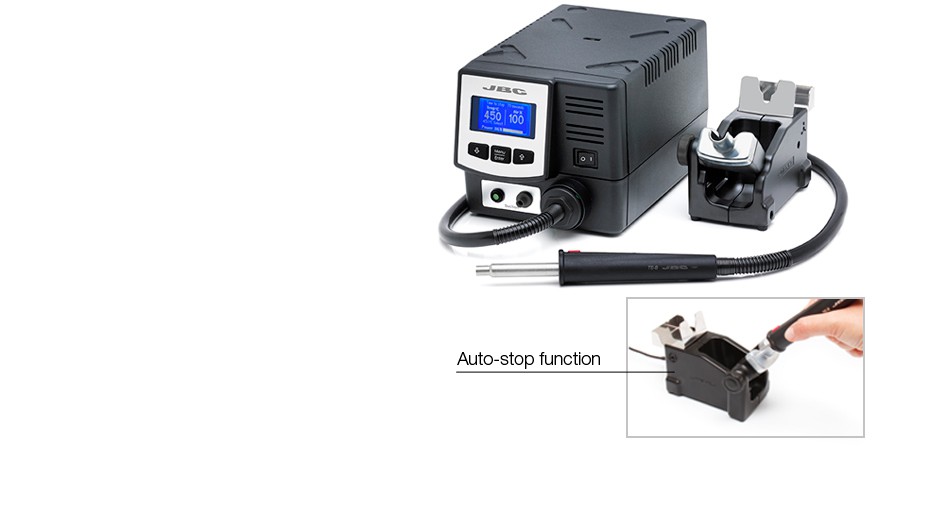

It comes with a complete extractor desk and the TE-SD Stand that guarantees the Auto-stop function.
Premium line
Product Composition
Control Unit:
Hot Air
Weight3.869 kg (8.53 lb)
Dimensions (Control Unit)148 x 184 x 140 mm
Input Fuse8A
Nominal power300W
Temperature selectionRoom Temperature / 150-450 ºC (300-840 ºF)
Ambient operating temp.10-40 ºC (50-104 ºF)
Air Flow Range3-17 SLPM
Vacuum30% / 228 mmHg / 9 inHg
Rated Current6A
ESD Safe
Package weight4.950 kg (10.91 lb)
Package dimensions474 x 368 x 195 mm

TE-QD Manual(946 Kb)

Rework Brochure(1.95 Mb)

Exploded View:
Exploded View(652 Kb)
