SHR760
Shears & crimping tool

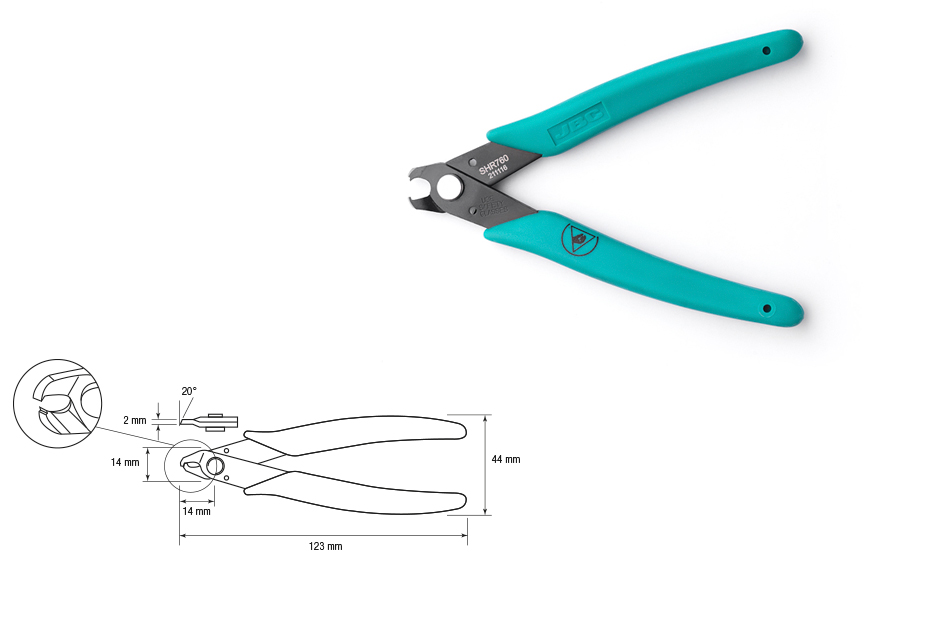

SHR760 - Shears & crimping tool
Cutting and crimping tool with ESD safe hand grips for soft wires up to 20 AWG (0.8mm) .

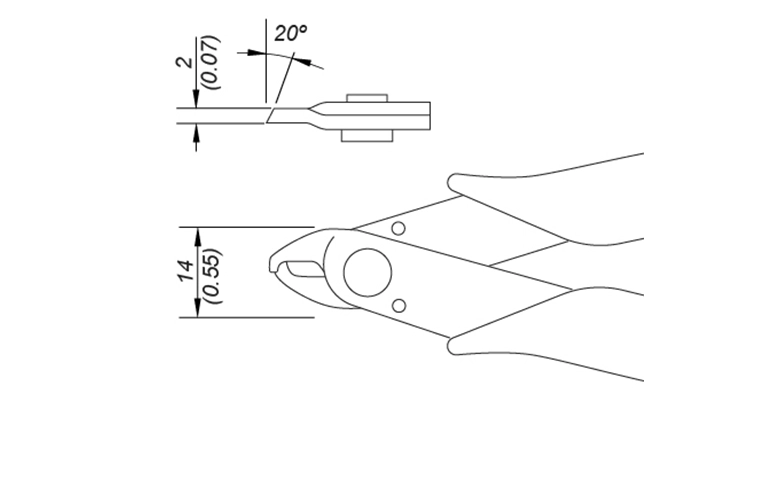

This model features a slim profile (0.085") that allows access to high density areas giving a clear view for precise positioning. Swaged leads are firmly attached to the PCB, while freshly exposed lead material enhances solderability.

With ultra light weight and ergonomic.

The best results are obtained when the diameter of the hole on the PCB is less than 1.5 times the diameter of the wire being cut or crimped.

Specifications
Total length
Weight48 gr (0.10 lb)
Package dimensions160 x 100 x 15 mm
Package weight60 gr (0.13 lb)
