RMVE
Complete Rework station with Pneumatic Pump

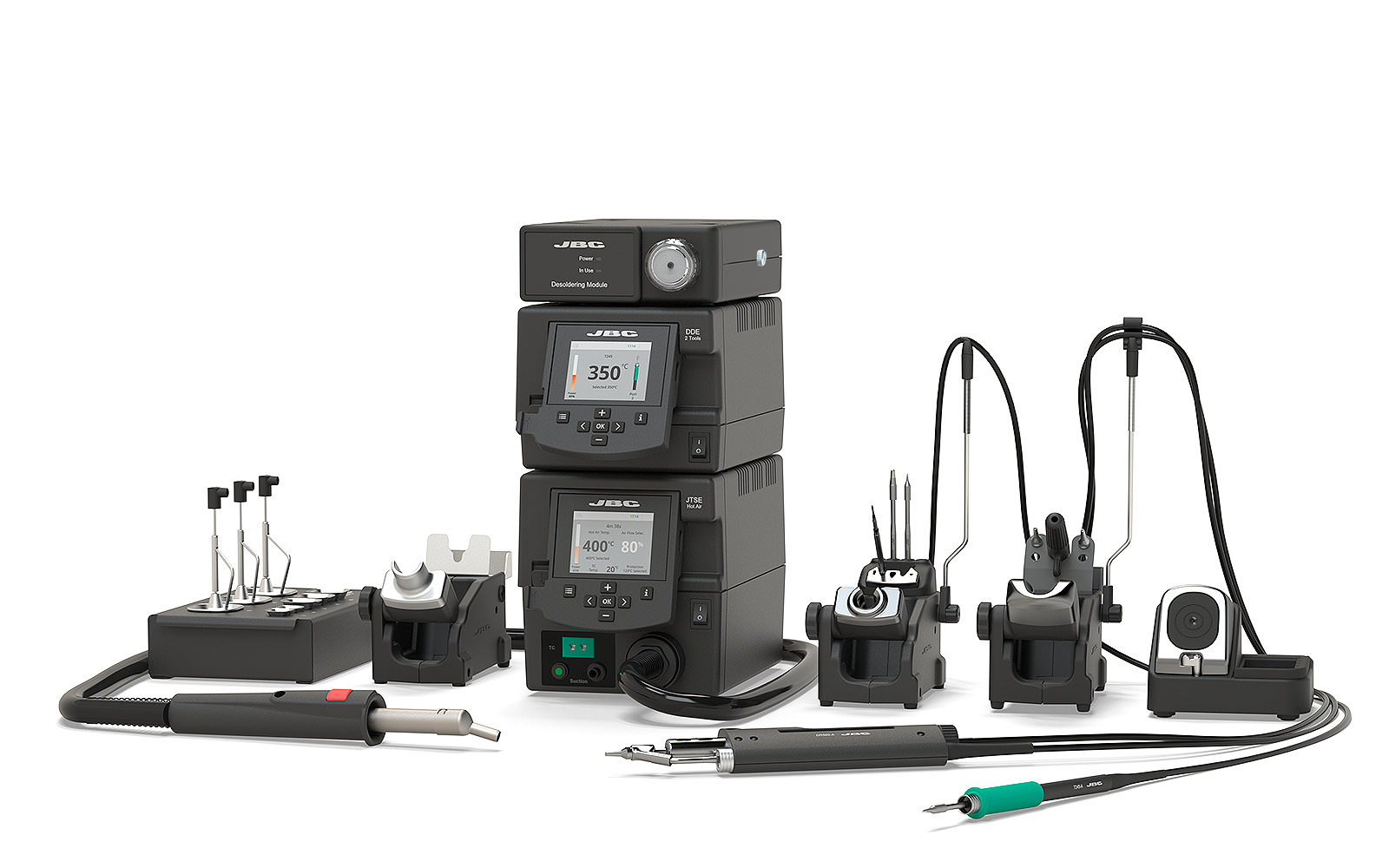

RMVE - Complete Rework station with Pneumatic Pump
The quickest and safest solution for soldering and rework, also using Hot Air.

It consists of stackable modules and all the necessary accessories to make your job easier.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits
and the JT-SD Stand that guarantees the
Auto-stop function when the heater is at rest.

The RMVE works simultaneously with the DR560 Desoldering Iron, the T245 Handle and
the JT-TA Heater Hose Set and is
compatible with most JBC tools.

Required compressed air
at the operator´s bench.
Premium line
Ref.
100 V
,
230 V
,
120 V
Specifications
Weight14.040 kg (30.95 lb)
Voltage120 V / 230 V / 100 V
Input FuseDDE:4A/ 2A/ 5A JT:8A/ 4A/ 8A
Output Peak PowerDDE: 150 W per tool
Nominal PowerJT: 700 W
Temperature selectionJT: 150-450ºC (300-840ºF) or Cool mode: Temp Off
DDE: 90-450 ºC (190-840 ºF)
Idle Temp. Stability (still air)DDE: ± 1.5 ºC (± 3 ºF)
Ambient operating temp.10-40 ºC (50-104 ºF)
Air Flow RegulationJT: 10-50 SLPM
Flow rateMVE: 15 SLPM
VacuumJT: 30% / 228 mmHg / 9 inHg
Vacuum (at 6 Bar)MVE:90%/680 mmHg/26.8 inHg
Air pressure4-6 Bar (Max. 6 Bar)
Rated currentJT: 6A/ 3A / 7A
Tip to ground resistanceDDE: <2 ohms
Tip to ground voltageDDE: <2 mV RMS
Communication connectorsJT: USB-B
Robot connectorDDE:USB-A/USB-B/Peripherals
Robot connectorDDE: RJ12 for RS-232 protocol
Pedal connectionJT and MVE: P-005 Pedal
ESD Safe
Package weight15.863 kg (34.97 lb)
Package dimensions480 x 370 x 380 mm
Documentation

Manuals:
RMVE-C Manual(6.63 Mb)

Brochures:

Exploded View:
Exploded View(529 Kb)
