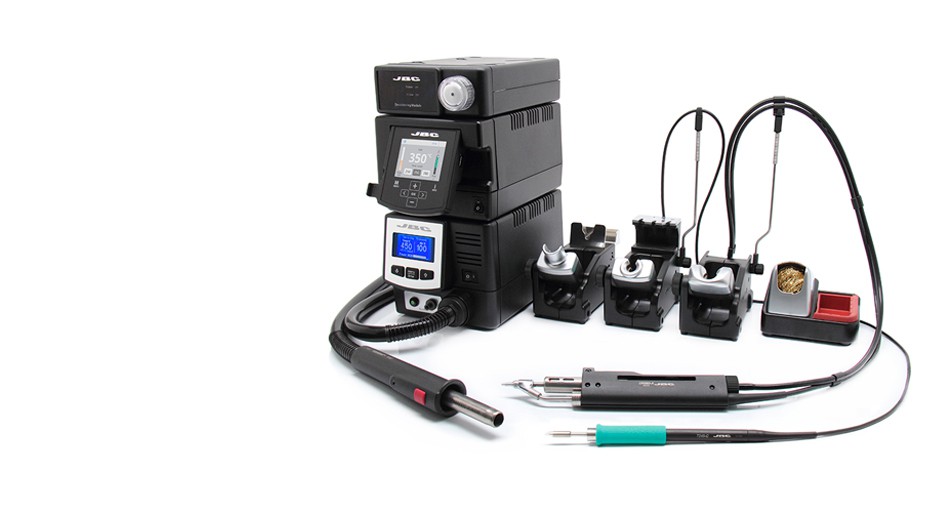

120 V - Complete Rework station with Pneumatic Pump

RMVE-1A - Complete Rework station with Pneumatic Pump
The quickest and safest solution for soldering and rework, also using Hot Air.

It consists of stackable modules and all the necessary accessories to make your job easier.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.

The RMVE works simultaneously with the DR560 Desoldering Iron, the T245 Handle and
the JT-TA Heater Hose Set and is compatible
with most JBC tools.

Required compressed air at the operator´s bench.
Premium line
Weight and DimensionsSee individual modules
Voltage120 V
Input FuseDDE: 4A / JT: 8A
Output Peak PowerDDE: 150 W per tool
Nominal PowerJT: 700 W
Temperature selectionJT: 150-450ºC (300-840ºF) or Cool mode: Temp Off
DDE: 90-450 ºC (190-840 ºF)
Idle Temp. Stability (still air)DDE: ± 1.5 ºC (± 3 ºF)
Ambient operating temp.10-40 ºC (50-104 ºF)
Air Flow RegulationJT: 10-50 SLPM
Flow rateMVE: 15 SLPM
VacuumJT: 90% / 680 mmHg / 26.8 inHg
MSE:75%/570 mmHg/22.4 inHg
Rated currentJT: 6A
Tip to ground resistanceDDE: <2 ohms
Tip to ground voltageDDE: <2 mV RMS
Communication connectorsJT: USB-B
Robot connectorDDE: RJ12 for RS-232 protocol
Pedal connectionJT and MSE: P-005 Pedal
ESD Safe
Package weight16.6 kg (36.5 lb)
Package dimensions480 x 375 x 390 mm

RMVE-A Manual(8.22 Mb)


Exploded View:
Exploded View(492 Kb)
