RMSE-2C
230 V - Complete Rework station with Electric Pump

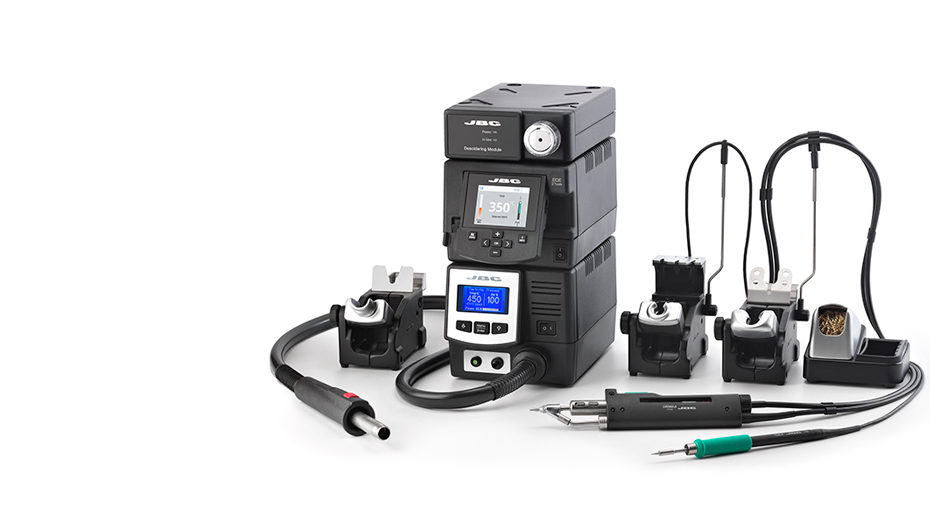

RMSE-2C - Complete Rework station with Electric Pump
The quickest and safest solution for soldering and rework, also using Hot Air.

It consists of stackable modules and all the necessary accessories to make your job easier.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits
and the JT-SD Stand that guarantees the
Auto-stop function when the heater is at rest.

The RMSE works simultaneously with the DR560 Desoldering Iron, the T245 Handle and
the JT-TA Heater Hose Set and is compatible
with most JBC tools.
Premium line
Specifications
Weight14.554 kg (32.08 lb)
Voltage230 V
Input FuseDDE: 2A / JT: 4A
Output Peak PowerDDE: 150 W per tool
Nominal PowerJT: 700 W
Temperature selectionJT: 150-450ºC (300-840ºF) or Cool mode: Temp Off
DDE: 90-450 ºC (190-840 ºF)
Idle Temp. Stability (still air)DDE: ± 1.5 ºC (± 3 ºF)
Ambient operating temp.10-40 ºC (50-104 ºF)
Air Flow RegulationJT: 10-50 SLPM
Flow rateMSE: 9 SLPM
VacuumJT: 30% / 228 mmHg / 9 inHg
MSE:75%/570 mmHg/22.4 inHg
Rated currentJT: 3A
Tip to ground resistanceDDE: <2 ohms
Tip to ground voltageDDE: <2 mV RMS
Communication connectorsJT: USB-B
DDE:USB-A/USB-B/Peripherals
Robot connectorDDE: RJ12 for RS-232 protocol
Pedal connectionJT and MSE: P-005 Pedal
ESD Safe
Package weight16.494 kg (36.36 lb)
Package dimensions480 x 370 x 380 mm
Documentation

Manuals:
RMSE-C Manual(6.84 Mb)

Brochures:

Exploded View:
Exploded View(536 Kb)
