DISCONTINUED

NAST
Nano Rework station

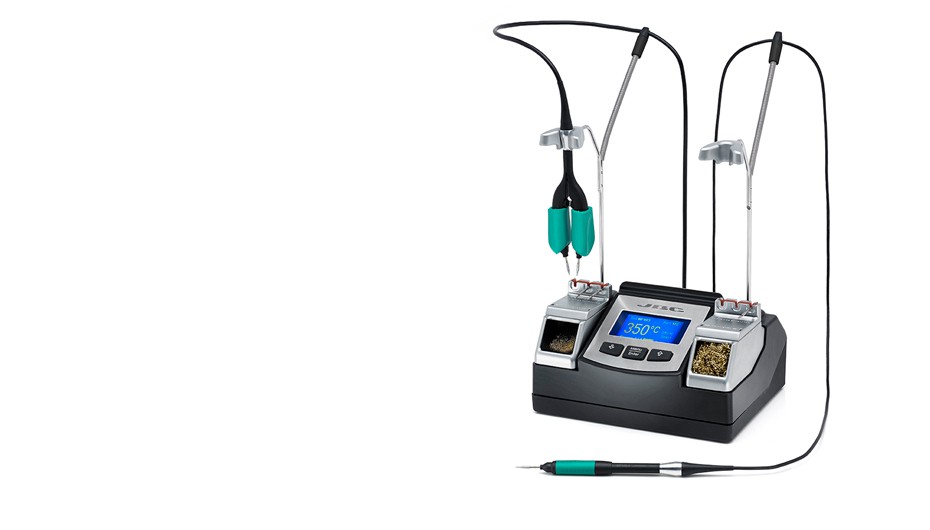

NAST - Nano Rework station
The NAST station is the best solution to repair very small-sized components at high precision such as chips 0402, 0201, 01005, etc.

It incorporates the JBC exclusive heating system and the intelligent sleep and hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It works simultaneously with NT105 Nano Soldering Iron and NP105 Nano Tweezers.

The short distance from the tip to the handle offers maximum control even when using a microscope.
Premium Line
Product Composition
Control Unit:
NAST control unit
Cartridges:
Specifications
Weight1.6 kg (3.5 lb)
Size170x290x160 mm
Voltage(AC)230V / 120V / 100V
Input Fuse0.2A (230V), 0.5A (120V and 100V)
Output Peak Power12W / 7.5V
Temperature selection90-400 ºC / 190-752 ºF
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
Package weight2.25 kg (4.96 lb)
Package dimensions276x276x136 mm
Documentation

Manuals:

Exploded View:
