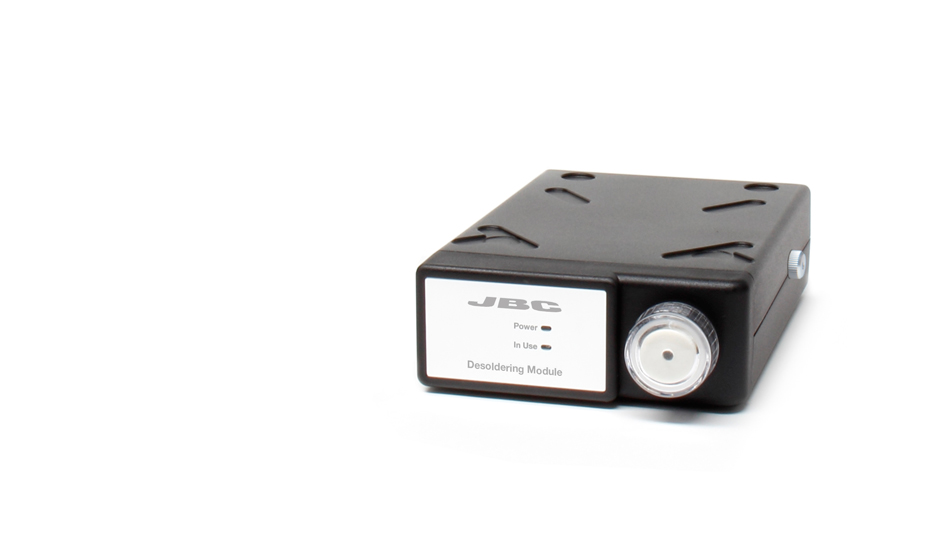

Pneumatic Desoldering Module for DI
The pneumatic suction module is indispensable for a complete desoldering process.
By using compressed air and a Venturi valve, the system provides the best results due to its instantaneous vacuum ramp.
It is equipped with some suction filters easy to change in order to extend the pump´s life.
MV is compatibe with CV station and DI control
unit which manage the tip temperature while module removes the molten solder.
MV works with the comfortable DS360 or DR560 desoldering irons and their corresponding tips.
|Weight||679 gr (1.49 lb)|
|Air pressure||4 - 6 Bar|
|Vacuum (at 6 Bar)||90% / 680mmHg / 26.8inHg|
|Flow rate||15 SLPM|
|Ambient operating temp.||10-40 ºC / 50-104 ºF|
|Package weight||982 gr (2.16 lb)|
|Package dimensions||285 x 195 x 115 mm|
