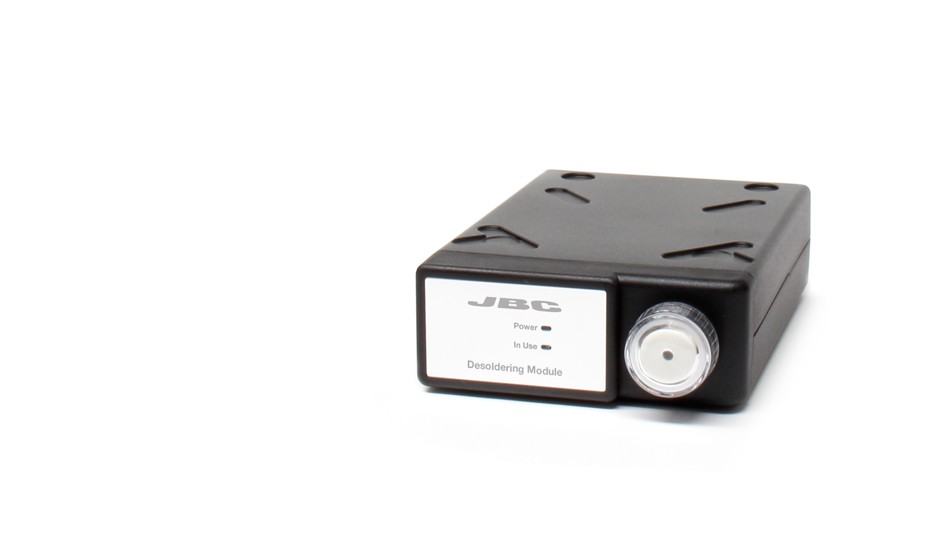

Electric Desoldering Module for DI

MS - Electric Desoldering Module for DI
The electric suction module is indispensable for a complete desoldering process.

Its optimized electronic suction system create a vacuum peak at the startup in order to collect the solder before it cools down.

It is equipped with some suction filters easy to change for extending the pump´s life.

MS is compatibe with CS station and DI control
unit which manage the tip temperature while module removes the molten solder.

MS works with the comfortable DS360 or DR560 desoldering irons and their corresponding tips.

Weight1.192 kg (2.62 lb)
Size145 x 55 x 225 mm
Vacuum75% / 570mmHg / 22.4inHg
Flow rate9 SLPM
Ambient operating temp.10-40ºC / 50-104 ºF
ESD Safe
Package weight1.500 kg (3.30 lb)
Package dimensions215 x 130 x 120 mm

Modular Line(456 Kb)

Exploded View:
