Nitrogen flow regulator for DI

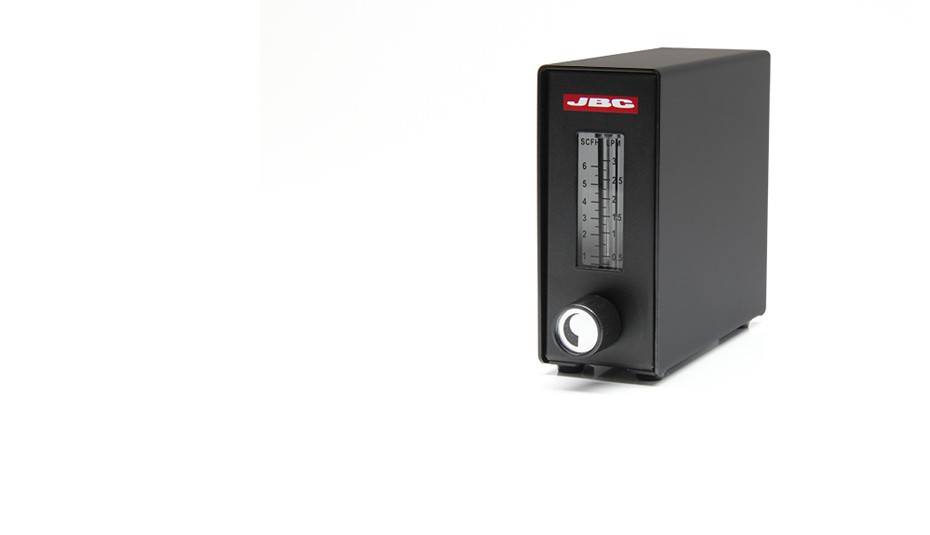

MN - Nitrogen flow regulator for DI
Nitrogen improves the quality of any solder joint because it provides extra heat and helps prevent tip oxidation.

The MN-A regulates nitrogen flow to the soldering tip in order to optimize consumption.

It automatically activates the flow when you remove the T245-NA handpiece from the stand. The flow stops when the tool is placed back
and the tip temperature drops to the sleep mode.

It requires the GN-A generator or an available nitrogen supply at the operator´s bench.

The MN-A works with DI control unit and the discontinued DD or DM.
Modular line
Weight1.142 kg (2.51 lb)
Size50 x 120 x 130 mm
Voltage(AC)24V (from control unit)
N2 flow regulation0.5 - 3 SLPM
Max. pressure6 Bar
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
Package weight1.298 kg (2.86 lb)
Package dimensions243 x 115 x 75 mm

Exploded View:
Exploded View(277 Kb)
