JT-Q
Hot Air station without extractor desk

JT-Q - Hot Air station without extractor desk
This is a high powered hot air station to repair all types of SMD quickly and safely, even the biggest QFPs and PLCCs.

The unit features two work modes -manual or program- to manage efficiently the temperature and the hot air flow.

Using the menu you can personalize over 20
parameters, including the activation mode of the tool: automatic, by button or by P-005 Pedal.

It works with the JT-TA heater and features
a USB-B connector for software updates.

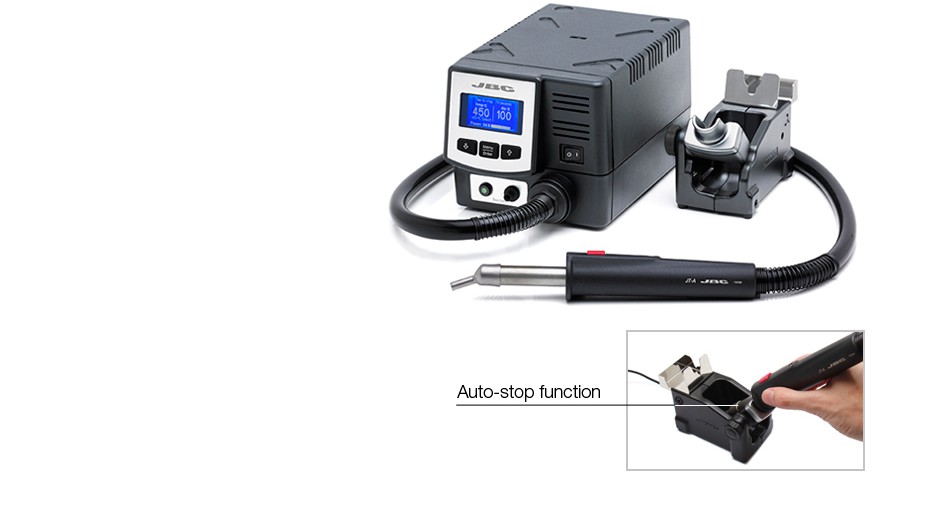

It comes with the JT-SD Stand that guarantees the Auto-stop function when the tool is at rest.
Premium line
Ref.
120 V
,
230 V
,
100 V
Specifications
Weight4.104 kg (9.04 lb)
Dimensions (Control Unit)148 x 184 x 140
Voltage (AC)230V / 120V / 100V
Input Fuse4A (230V), 8A (120V and 100V)
Nominal Power700 W
Temperature selectionRoom Temperature / 150-450 ºC (300-840 ºF)
Cool mode: temp. Off
Ambient operating temp.10-40 ºC (50-104 ºF)
Air Flow Regulation10 - 50 SLPM
Vacuum30% / 228 mmHg / 9 inHg
Rated Current3A(230V), 6A(120V), 7A(100V)
Communication connectorsUSB-B
Pedal connectionP-005 Pedal
ESD Safe
Package weight5.171 kg (11.39 lb)
Package dimensions474 x 368 x 195 mm
Documentation

Manuals:
JT-QD Manual(3.13 Mb)

Brochures:
Rework Brochure(1.95 Mb)

Exploded View:
Exploded View(420 Kb)
