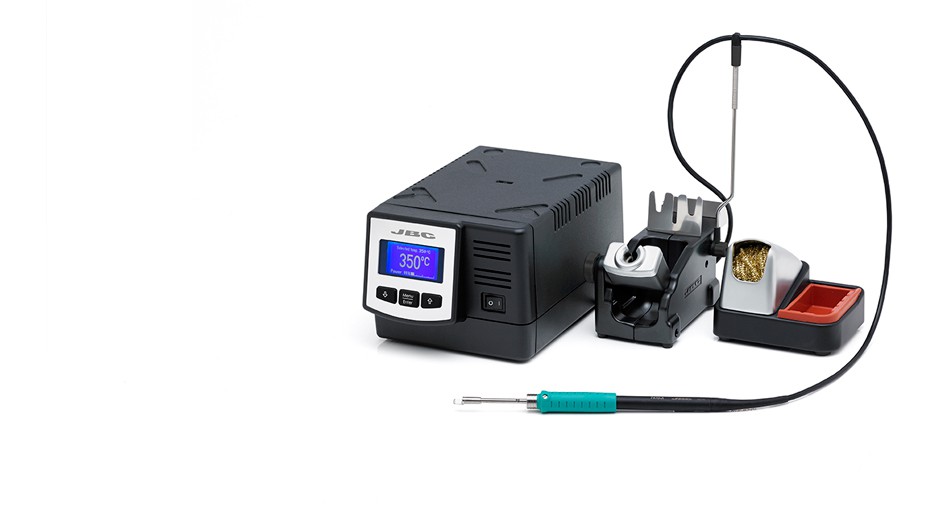

230 V - Heavy Duty station

HD-2B - Heavy Duty station
HD is the ideal solution for high thermal demand or prolonged soldering applications such as the production of solar panels, multi-layered circuits and components of large dissipation surfaces.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It incorporates a USB connector (type B) to update station software and create graphs.

HD station works with the comfortable T470 handpiece and C470 cartridges.

This station is supplied without any cartridge
Premium line
Product Composition
Control Unit:
Heavy Duty
Weight5.9 kg (13.1 lb)
Size145 x 120 x 225 mm
Input Fuse2A
Output Peak Power250W / 47V
Temperature selection90-500 ºC / 190-932 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Package weight6.8 kg (15 lb)
Package dimensions370x370x200 mm
