120 V - Desoldering station with pneumatic suction module

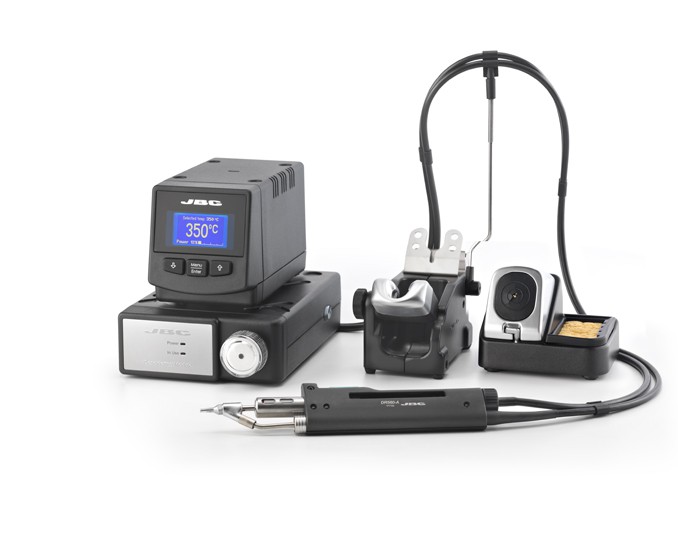

DIV-1D - Desoldering station with pneumatic suction module
This station allows you to desolder insertion components and to clean circuits with SMD.

The MV suction module offers the best results using a Venturi valve. This system requires available compressed air at the operator´s bench.

It works with the JBC Exclusive Heating System and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The USB connector allows to update software, create graphs and manage parameters from a PC.

This station works with the comfortable DR560 Desoldering Iron and C560 tips.
Premium line
Product Composition
Control Unit:
Cleaning Systems:
Weight5.718 kg (12.60 lb)
SizeSee individual modules
Input Fuse2A
Output Peak Power130W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Air pressure3 - 6 Bar
Vacuum90% / 680mmHg / 26.8inHg
Flow rate15 SLPM
Package weight6.589 kg (14.52 lb)
Package dimensions368 x 368 x 195 mm

DIV Manual(1.65 Mb)

Exploded View:
Exploded View(577 Kb)
