120 V - Soldering station

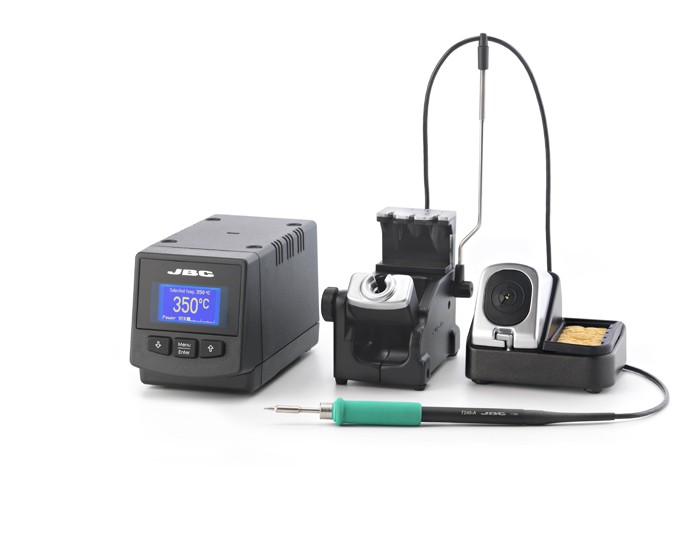

DIT-1D - Soldering station
This station is perfect for industrial soldering jobs with medium and high power requirements.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The USB connector allows to update software, create graphs and manage parameters from a PC.

Although the DI control unit is fully compatible
with all JBC tools, the DIT station works with the lightest and ergonomic T245-A handpiece and C245 cartridges.
Premium line
Product Composition
Control Unit:
Cleaning Systems:
Weight4.250 kg (9.36 lb)
SizeSee individual modules
Input Fuse2A
Output Peak Power130W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Package weight5.417 kg (11.94 lb)
Package dimensions368 x 368 x 195 mm

DI-D Manual(1.28 Mb)
Stands Manual(1.9 Mb)

Premium Line(548 Kb)

Exploded View:
Exploded View(599 Kb)
