230 V - 1 Tool Control Unit

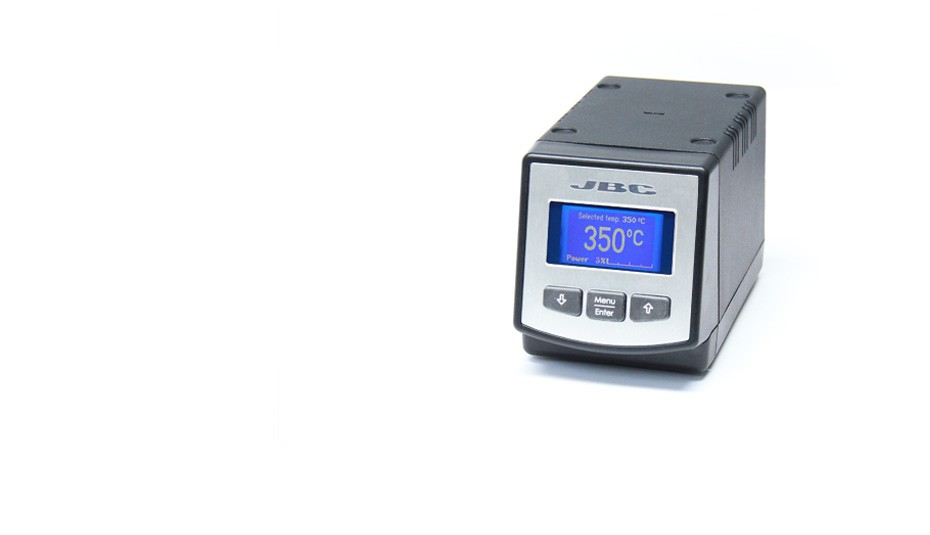

DI-2B - 1 Tool Control Unit
This control unit manages 1 tool for production and reworking applications. It offers full connectivity to any kind of tools in order to build your own soldering or desoldering station.

For a basic working system, you also need at least 1 stand, 1 tool and 1 cartridge. There are available more than 300 cartridges to choose.

DI incorporates the JBC exclusive heating system that increases the work efficiency thanks to the fast temperature recovery.

The intelligent sleep and the hibernation feature enable to extend tip´s life more than 5 times.

Through the menu you can customize more than 20 functionalities in order to manage the soldering process.
Modular line
Weight2 kg (4.3 Lb)
Input Fuse1A
Output Peak Power130W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Package weight2.3 kg (5 lb)
Package dimensions215x225x160 mm


Modular line(279 Kb)

Exploded View:
