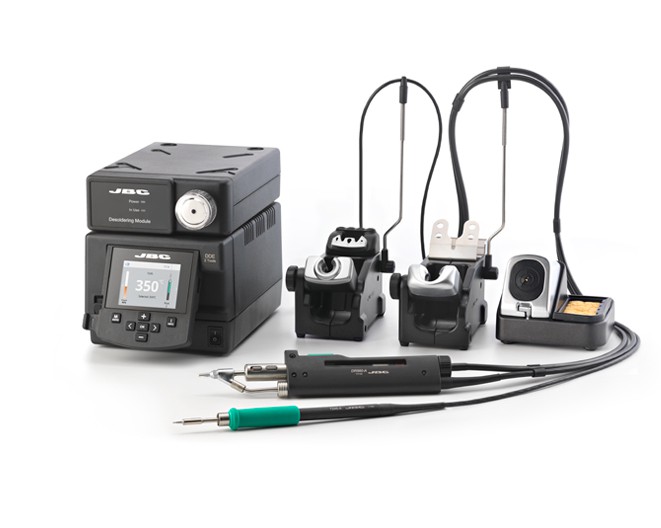

100 V - Rework station with Electric Pump
The DDE 2 Tools Control Unit manages the tip
temperature and the MSE Electric Desoldering Module sucks the solder.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.
It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.
Although the unit is compatible with any JBC tool, the DDSE works simultaneously with the DR560 Desoldering Iron and the T245 Handle.
|Weight||9.253 kg (20.39 lb)|
|Dimensions||See individual modules|
|Output peak power||150W per tool|
|Temperature selection||90-450 ºC (190-840 ºF)|
|Idle temp. stability (still air)||±1.5 ºC (±3 ºF)|
|Tip to ground resistance||<2 ohms|
|Tip to ground voltage||<2 mV RMS|
|Ambient operating temp.||10-40 ºC (50-104 ºF)|
|Communication connectors||USB-A / USB-B / Peripherals|
|Robot connector||RJ12 for RS-232 protocol|
|Vacuum (MSE-A)||75% / 570mmHg / 22.4inHg|
|Flow rate (MSE-A)||9 SLPM|
|Package weight||10.393 kg (22.91 lb)|
|Package dimensions||368 x 474 x 195 mm|
