CS-9CDesoldering station with Electric Pump

CS-9C
Desoldering station with Electric Pump

DISCONTINUED
CS-9C - Desoldering station with Electric Pump

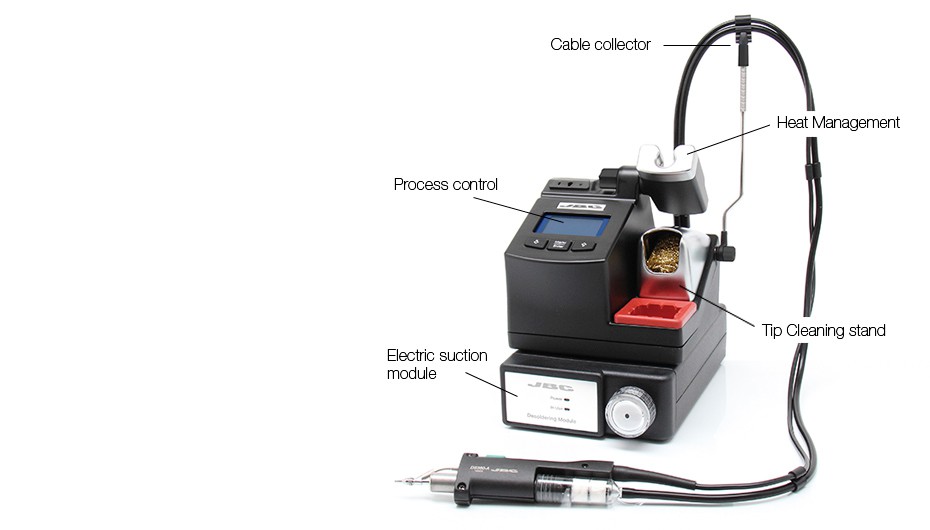

CS is a desoldering station with an electric pump and JBC Advanced system for precision electronic applications.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It incorporates a USB connector (type B) to update station software and create graphs.

CS is equipped with the MS-A electric pump and works with the comfortable DS360 Micro desoldering Iron and C360 cartridges.
Net weight
2.8 kg (6.2 lb) (station)
Size
150x175x145 mm (station)
0.59 x 0.67 x 5.71 in
Voltage
100V
Input fuse
2A
Output peak power
40W / 23.5V
Temperature selection
180-450 ºC / 356-840 ºF
Operating temp. range
10-40 ºC / 50-104 ºF
ESD safe
Vacuum
75% / 570mmHg / 22.4inHg
Flow rate
9 SLPM
USB interface station-PC
Package weight
5.100 kg (11.24 lb)
Package dimensions
330x260x305 mm
1.30 x 1.02 x 12.01 in
