100 V - Precision Soldering station

CD-9SC - Precision Soldering station

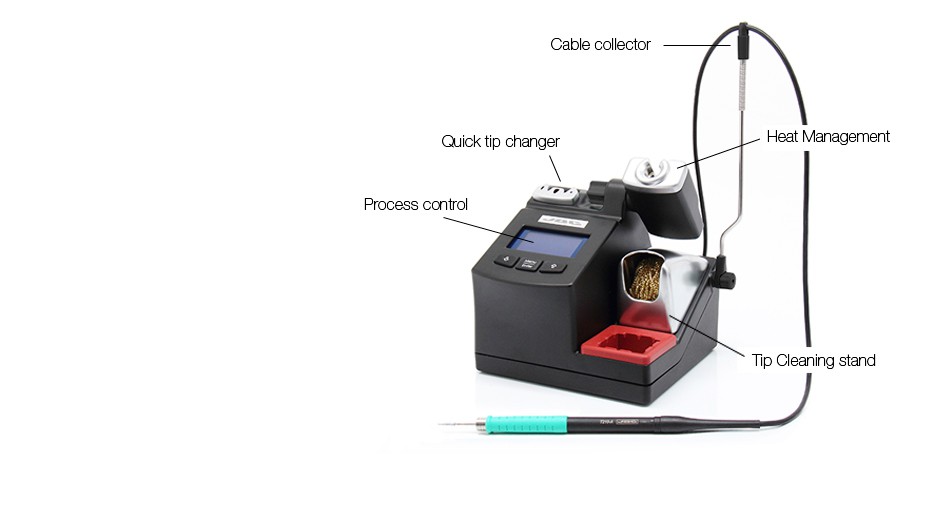

The CD-S is a soldering station for precision electronic applications.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It incorporates a USB connector (type B) to update station software and create graphs.

CD-S works with the lightest and ergonomic T210 Handpiece and the C210 cartridges.
Compact Line
Product Composition
Control Unit:
CD with tip cleaning system
Weight2.6 kg (5.7 lb)
Size150x175x145 mm
Input Fuse2A
Output Peak Power40W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Package weight3 kg (6.6 lb)
Package dimensions235x235x260 mm

CD-SC Manual(2.79 Mb)

Exploded View:
Exploded View(618 Kb)
